AeonGames::VulkanFrameBuffer Class Reference

Vulkan framebuffer object for off-screen rendering. More...

#include <C:/Code/AeonEngine/engine/renderers/vulkan/VulkanFrameBuffer.hpp>

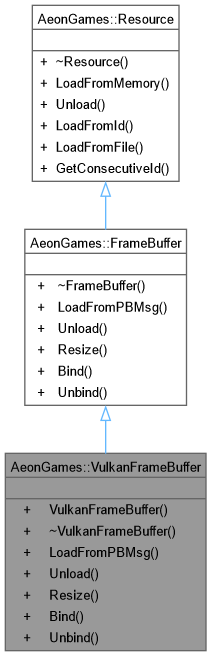

Inheritance diagram for AeonGames::VulkanFrameBuffer:

Collaboration diagram for AeonGames::VulkanFrameBuffer:

Public Member Functions
void	LoadFromPBMsg (const FrameBufferMsg &aFrameBufferMsg)
	Initialize the frame buffer from a protobuf message.
void	Unload ()
	Release all resources held by this frame buffer.
void	Resize (uint32_t aWidth, uint32_t aHeight)
	Resize the frame buffer to new dimensions.
void	Bind ()
	Bind this frame buffer as the current render target.
void	Unbind ()
	Unbind this frame buffer, restoring the previous render target.
Public Member Functions inherited from AeonGames::Resource
virtual	~Resource ()
	Virtual destructor.
virtual void	LoadFromMemory (const void *aBuffer, size_t aBufferSize)=0
	Load the resource from a raw memory buffer.
DLL void	LoadFromId (uint32_t aId)
	Load the resource identified by a numeric id.
DLL void	LoadFromFile (const std::string &aFilename)
	Load the resource from a file on disk.
DLL size_t	GetConsecutiveId () const
	Get the Consecutive Id for the resource object.

Detailed Description

Vulkan framebuffer object for off-screen rendering.

Definition at line 25 of file VulkanFrameBuffer.hpp.

Constructor & Destructor Documentation

~VulkanFrameBuffer()

AeonGames::VulkanFrameBuffer::~VulkanFrameBuffer

(

)

Definition at line 32 of file VulkanFrameBuffer.cpp.

Member Function Documentation

Bind()

void AeonGames::VulkanFrameBuffer::Bind ( )

virtual

Bind this frame buffer as the current render target.

Implements AeonGames::FrameBuffer.

Definition at line 45 of file VulkanFrameBuffer.cpp.

LoadFromPBMsg()

void AeonGames::VulkanFrameBuffer::LoadFromPBMsg ( const FrameBufferMsg & aFrameBufferMsg )

virtual

Initialize the frame buffer from a protobuf message.

Parameters

aFrameBufferMsg

Protobuf message describing the frame buffer configuration.

Todo

Write Me

Implements AeonGames::FrameBuffer.

Definition at line 36 of file VulkanFrameBuffer.cpp.

Resize()

void AeonGames::VulkanFrameBuffer::Resize ( uint32_t aWidth, uint32_t aHeight )

virtual

Resize the frame buffer to new dimensions.

Parameters

aWidth	New width in pixels.
aHeight	New height in pixels.

Implements AeonGames::FrameBuffer.

Definition at line 44 of file VulkanFrameBuffer.cpp.

Unbind()

void AeonGames::VulkanFrameBuffer::Unbind ( )

virtual

Unbind this frame buffer, restoring the previous render target.

Implements AeonGames::FrameBuffer.

Definition at line 46 of file VulkanFrameBuffer.cpp.

Unload()

void AeonGames::VulkanFrameBuffer::Unload ( )

virtual

Release all resources held by this frame buffer.

Todo

Write Me

Implements AeonGames::FrameBuffer.

Definition at line 40 of file VulkanFrameBuffer.cpp.

---

The documentation for this class was generated from the following files:

• engine/renderers/vulkan/VulkanFrameBuffer.hpp
• engine/renderers/vulkan/VulkanFrameBuffer.cpp
