AeonGames::Scene Class Reference

Scene class. Scene is the container for all elements in a game level, takes care of collision, rendering and updates to all elements therein. More...

#include <aeongames/Scene.hpp>

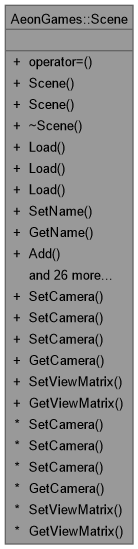

Collaboration diagram for AeonGames::Scene:

Public Member Functions
Scene &	operator= (const Scene &)=delete
	Scene (const Scene &)=delete
DLL	Scene ()
	Construct an empty scene.
DLL	~Scene ()
	Destructor.
DLL void	Load (uint32_t aId)
	Load a scene from a resource identified by id.
DLL void	Load (const std::string &aFilename)
	Load a scene from a file.
DLL void	Load (const void *aBuffer, size_t aBufferSize)
	Load a scene from a memory buffer.
DLL void	SetName (const char *aName)
	Set the scene name.
DLL const char *const	GetName () const
	Get the scene name.
DLL Node *	Add (std::unique_ptr< Node > aNode)
	Add a top-level node to the scene.
DLL Node *	Insert (size_t aIndex, std::unique_ptr< Node > aNode)
	Insert a top-level node at a specific index.
DLL std::unique_ptr< Node >	Remove (Node *aNode)
	Remove a top-level node by pointer.
DLL std::unique_ptr< Node >	RemoveByIndex (size_t aIndex)
	Remove a top-level node by index.
DLL size_t	GetChildrenCount () const
	Get the number of top-level child nodes.
DLL Node *	GetChild (size_t aIndex) const
	Get a top-level child node by index.
DLL size_t	GetChildIndex (const Node *aNode) const
	Get the index of a top-level child node.
DLL const Node &	operator[] (const std::size_t index) const
	Access a top-level child node by index (const).
DLL Node &	operator[] (const std::size_t index)
	Access a top-level child node by index.
DLL void	Update (const double delta)
	Update all nodes in the scene.
DLL void	BroadcastMessage (uint32_t aMessageType, const void *aMessageData)
	Broadcast a message to all nodes in the scene.
DLL void	LoopTraverseDFSPreOrder (const std::function< void(Node &) > &aAction)
	Iterative depth-first pre-order traversal of all nodes in the scene.
DLL void	LoopTraverseDFSPreOrder (const std::function< void(Node &) > &aPreamble, const std::function< void(Node &) > &aPostamble)
	Iterative depth-first pre-order traversal with separate preamble and postamble actions.
DLL void	LoopTraverseDFSPreOrder (const std::function< void(const Node &) > &aAction) const
	Iterative depth-first pre-order traversal (const version).
DLL void	LoopTraverseDFSPostOrder (const std::function< void(Node &) > &aAction)
	Iterative depth-first post-order traversal of all nodes in the scene.
DLL void	LoopTraverseDFSPostOrder (const std::function< void(const Node &) > &aAction) const
	Iterative depth-first post-order traversal (const version).
DLL void	RecursiveTraverseDFSPreOrder (const std::function< void(Node &) > &aAction)
	Recursive depth-first pre-order traversal of all nodes in the scene.
DLL void	RecursiveTraverseDFSPostOrder (const std::function< void(Node &) > &aAction)
	Recursive depth-first post-order traversal of all nodes in the scene.
DLL Node *	Find (const std::function< bool(const Node &) > &aUnaryPredicate) const
	Find the first node matching a predicate via depth-first search.
DLL std::string	Serialize (bool aAsBinary=true) const
	Serialize the scene to a string.
DLL void	Deserialize (const std::string &aSerializedScene)
	Deserialize a scene from a string.
DLL void	SetFieldOfView (float aFieldOfView)
	Set the vertical field of view.
DLL void	SetNear (float aNear)
	Set the near clipping plane distance.
DLL void	SetFar (float aFar)
	Set the far clipping plane distance.
DLL float	GetFieldOfView () const
	Get the vertical field of view.
DLL float	GetNear () const
	Get the near clipping plane distance.
DLL float	GetFar () const
	Get the far clipping plane distance.
Camera Data
DLL void	SetCamera (Node *aNode)
	Set rendering camera.
DLL void	SetCamera (uint32_t aNodeId)
	Set rendering camera by node id.
DLL void	SetCamera (const std::string &aNodeName)
	Set rendering camera by node name.
DLL const Node *	GetCamera () const
	Get the current camera node.
DLL void	SetViewMatrix (const Matrix4x4 &aMatrix)
	Set the view matrix directly.
DLL const Matrix4x4 &	GetViewMatrix () const
	Get the current view matrix.

Friends
class	Node

Detailed Description

Scene class. Scene is the container for all elements in a game level, takes care of collision, rendering and updates to all elements therein.

Definition at line 39 of file Scene.hpp.

Constructor & Destructor Documentation

Scene()

AeonGames::Scene::Scene ( )

explicit

Construct an empty scene.

Todo

implement Linear Octrees: https://geidav.wordpress.com/2014/08/18/advanced-octrees-2-node-representations/

Definition at line 46 of file Scene.cpp.

~Scene()

AeonGames::Scene::~Scene

(

)

Destructor.

Definition at line 52 of file Scene.cpp.

Member Function Documentation

Add()

Node * AeonGames::Scene::Add

(

std::unique_ptr< Node >

aNode

)

Add a top-level node to the scene.

Parameters

aNode

Unique pointer to the node.

Returns

Raw pointer to the added node.

Definition at line 310 of file Scene.cpp.

BroadcastMessage()

void AeonGames::Scene::BroadcastMessage	(	uint32_t	aMessageType,
		const void *	aMessageData )

Broadcast a message to all nodes in the scene.

Parameters

aMessageType	Type identifier for the message.
aMessageData	Pointer to message-specific data.

Definition at line 192 of file Scene.cpp.

Deserialize()

void AeonGames::Scene::Deserialize

(

const std::string &

aSerializedScene

)

Deserialize a scene from a string.

Parameters

aSerializedScene

The serialized scene data.

Definition at line 427 of file Scene.cpp.

Find()

Node * AeonGames::Scene::Find

(

const std::function< bool(const Node &) > &

aUnaryPredicate

)

const

Find the first node matching a predicate via depth-first search.

Parameters

aUnaryPredicate

Callable returning true for the desired node.

Returns

Pointer to the matching node, or nullptr if none found.

Definition at line 248 of file Scene.cpp.

GetCamera()

const Node * AeonGames::Scene::GetCamera

(

)

const

Get the current camera node.

Returns

Pointer to the camera node, or nullptr if unset.

Definition at line 107 of file Scene.cpp.

GetChild()

Node * AeonGames::Scene::GetChild

(

size_t

aIndex

)

const

Get a top-level child node by index.

Parameters

aIndex

Index of the child.

Returns

Pointer to the child node.

Definition at line 155 of file Scene.cpp.

GetChildIndex()

size_t AeonGames::Scene::GetChildIndex

(

const Node *

aNode

)

const

Get the index of a top-level child node.

Parameters

aNode

Pointer to the node to look up.

Returns

Index of the node within the top-level children.

Definition at line 160 of file Scene.cpp.

GetChildrenCount()

size_t AeonGames::Scene::GetChildrenCount

(

)

const

Get the number of top-level child nodes.

Returns

Child count.

Definition at line 150 of file Scene.cpp.

GetFar()

float AeonGames::Scene::GetFar

(

)

const

Get the far clipping plane distance.

Returns

Far plane distance.

Definition at line 135 of file Scene.cpp.

GetFieldOfView()

float AeonGames::Scene::GetFieldOfView

(

)

const

Get the vertical field of view.

Returns

Field of view in degrees.

Definition at line 127 of file Scene.cpp.

GetName()

const char *const AeonGames::Scene::GetName

(

)

const

Get the scene name.

Returns

Pointer to the null-terminated name string.

Definition at line 87 of file Scene.cpp.

GetNear()

float AeonGames::Scene::GetNear

(

)

const

Get the near clipping plane distance.

Returns

Near plane distance.

Definition at line 131 of file Scene.cpp.

GetViewMatrix()

const Matrix4x4 & AeonGames::Scene::GetViewMatrix

(

)

const

Get the current view matrix.

Returns

Const reference to the view matrix.

Definition at line 145 of file Scene.cpp.

Insert()

Node * AeonGames::Scene::Insert	(	size_t	aIndex,
		std::unique_ptr< Node >	aNode )

Insert a top-level node at a specific index.

Parameters

aIndex	Position at which to insert.
aNode	Unique pointer to the node.

Returns

Raw pointer to the inserted node.

Definition at line 276 of file Scene.cpp.

Load() [1/3]

void AeonGames::Scene::Load

(

const std::string &

aFilename

)

Load a scene from a file.

Parameters

aFilename

Path to the scene file.

Definition at line 60 of file Scene.cpp.

Load() [2/3]

void AeonGames::Scene::Load	(	const void *	aBuffer,
		size_t	aBufferSize )

Load a scene from a memory buffer.

Parameters

aBuffer	Pointer to the data buffer.
aBufferSize	Size of the buffer in bytes.

Definition at line 77 of file Scene.cpp.

Load() [3/3]

void AeonGames::Scene::Load

(

uint32_t

aId

)

Load a scene from a resource identified by id.

Parameters

aId	Resource identifier.

Definition at line 64 of file Scene.cpp.

LoopTraverseDFSPostOrder() [1/2]

void AeonGames::Scene::LoopTraverseDFSPostOrder

(

const std::function< void(const Node &) > &

aAction

)

const

Iterative depth-first post-order traversal (const version).

Parameters

aAction

Callable invoked for each node.

Definition at line 240 of file Scene.cpp.

LoopTraverseDFSPostOrder() [2/2]

void AeonGames::Scene::LoopTraverseDFSPostOrder

(

const std::function< void(Node &) > &

aAction

)

Iterative depth-first post-order traversal of all nodes in the scene.

Parameters

aAction

Callable invoked for each node.

Definition at line 232 of file Scene.cpp.

LoopTraverseDFSPreOrder() [1/3]

void AeonGames::Scene::LoopTraverseDFSPreOrder

(

const std::function< void(const Node &) > &

aAction

)

const

Iterative depth-first pre-order traversal (const version).

Parameters

aAction

Callable invoked for each node.

Definition at line 224 of file Scene.cpp.

LoopTraverseDFSPreOrder() [2/3]

void AeonGames::Scene::LoopTraverseDFSPreOrder

(

const std::function< void(Node &) > &

aAction

)

Iterative depth-first pre-order traversal of all nodes in the scene.

Parameters

aAction

Callable invoked for each node.

Definition at line 206 of file Scene.cpp.

LoopTraverseDFSPreOrder() [3/3]

void AeonGames::Scene::LoopTraverseDFSPreOrder	(	const std::function< void(Node &) > &	aPreamble,
		const std::function< void(Node &) > &	aPostamble )

Iterative depth-first pre-order traversal with separate preamble and postamble actions.

Parameters

aPreamble	Callable invoked upon entering each node.
aPostamble	Callable invoked upon leaving each node.

Definition at line 214 of file Scene.cpp.

operator[]() [1/2]

Node & AeonGames::Scene::operator[]

(

const std::size_t

index

)

Access a top-level child node by index.

Parameters

index

Index of the child.

Returns

Reference to the child node.

Definition at line 179 of file Scene.cpp.

operator[]() [2/2]

const Node & AeonGames::Scene::operator[]

(

const std::size_t

index

)

const

Access a top-level child node by index (const).

Parameters

index

Index of the child.

Returns

Const reference to the child node.

Definition at line 174 of file Scene.cpp.

RecursiveTraverseDFSPostOrder()

void AeonGames::Scene::RecursiveTraverseDFSPostOrder

(

const std::function< void(Node &) > &

aAction

)

Recursive depth-first post-order traversal of all nodes in the scene.

Parameters

aAction

Callable invoked for each node.

Definition at line 268 of file Scene.cpp.

RecursiveTraverseDFSPreOrder()

void AeonGames::Scene::RecursiveTraverseDFSPreOrder

(

const std::function< void(Node &) > &

aAction

)

Recursive depth-first pre-order traversal of all nodes in the scene.

Parameters

aAction

Callable invoked for each node.

Definition at line 260 of file Scene.cpp.

Remove()

std::unique_ptr< Node > AeonGames::Scene::Remove

(

Node *

aNode

)

Remove a top-level node by pointer.

Parameters

aNode

Pointer to the node to remove.

Returns

Unique pointer to the removed node, or nullptr if not found.

Definition at line 336 of file Scene.cpp.

RemoveByIndex()

std::unique_ptr< Node > AeonGames::Scene::RemoveByIndex

(

size_t

aIndex

)

Remove a top-level node by index.

Parameters

aIndex

Index of the node to remove.

Returns

Unique pointer to the removed node.

Definition at line 360 of file Scene.cpp.

Serialize()

std::string AeonGames::Scene::Serialize

(

bool

aAsBinary = true

)

const

Serialize the scene to a string.

Parameters

aAsBinary

If true, serialize as binary protobuf; otherwise as text.

Returns

The serialized scene data.

Definition at line 374 of file Scene.cpp.

SetCamera() [1/3]

void AeonGames::Scene::SetCamera

(

const std::string &

aNodeName

)

Set rendering camera by node name.

Parameters

aNodeName

Name of the camera node.

Definition at line 102 of file Scene.cpp.

SetCamera() [2/3]

void AeonGames::Scene::SetCamera

(

Node *

aNode

)

Set rendering camera.

Parameters

aNode

pointer to the node for which camera location and orientation will be extracted.

Todo

Need a way to uniquely identify nodes for messaging and camera assignment.

Definition at line 92 of file Scene.cpp.

SetCamera() [3/3]

void AeonGames::Scene::SetCamera

(

uint32_t

aNodeId

)

Set rendering camera by node id.

Parameters

aNodeId

Identifier of the camera node.

Definition at line 97 of file Scene.cpp.

SetFar()

void AeonGames::Scene::SetFar

(

float

aFar

)

Set the far clipping plane distance.

Parameters

aFar	Far plane distance.

Definition at line 122 of file Scene.cpp.

SetFieldOfView()

void AeonGames::Scene::SetFieldOfView

(

float

aFieldOfView

)

Set the vertical field of view.

Parameters

aFieldOfView

Field of view in degrees.

Definition at line 112 of file Scene.cpp.

SetName()

void AeonGames::Scene::SetName

(

const char *

aName

)

Set the scene name.

Parameters

aName

Null-terminated name string.

Definition at line 82 of file Scene.cpp.

SetNear()

void AeonGames::Scene::SetNear

(

float

aNear

)

Set the near clipping plane distance.

Parameters

aNear

Near plane distance.

Definition at line 117 of file Scene.cpp.

SetViewMatrix()

void AeonGames::Scene::SetViewMatrix

(

const Matrix4x4 &

aMatrix

)

Set the view matrix directly.

Parameters

aMatrix

The new view matrix.

Definition at line 140 of file Scene.cpp.

Update()

void AeonGames::Scene::Update

(

const double

delta

)

Update all nodes in the scene.

Parameters

delta

Elapsed time in seconds since the last update.

Definition at line 184 of file Scene.cpp.

Friends And Related Symbol Documentation

Node

friend class Node

friend

Definition at line 184 of file Scene.hpp.

---

The documentation for this class was generated from the following files:

• include/aeongames/Scene.hpp
• engine/core/Scene.cpp
