AeonGames::Skeleton Class Reference

Skeletal animation resource containing a hierarchy of joints. More...

#include <aeongames/Skeleton.hpp>

Inheritance diagram for AeonGames::Skeleton:

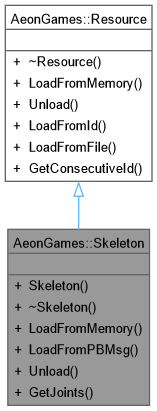

Collaboration diagram for AeonGames::Skeleton:

Classes
class	Joint
	A single joint within a skeleton hierarchy. More...

Public Member Functions
DLL	Skeleton ()
	Construct an empty skeleton.
DLL	~Skeleton ()
	Destructor.
DLL void	LoadFromMemory (const void *aBuffer, size_t aBufferSize) final
	Load the skeleton from a memory buffer.
DLL void	LoadFromPBMsg (const SkeletonMsg &aSkeletonMsg)
	Load the skeleton from a protobuf message.
DLL void	Unload () final
	Unload and release skeleton data.
DLL const std::vector< Joint > &	GetJoints () const
	Get the joint list.
Public Member Functions inherited from AeonGames::Resource
virtual	~Resource ()
	Virtual destructor.
DLL void	LoadFromId (uint32_t aId)
	Load the resource identified by a numeric id.
DLL void	LoadFromFile (const std::string &aFilename)
	Load the resource from a file on disk.
DLL size_t	GetConsecutiveId () const
	Get the Consecutive Id for the resource object.

Detailed Description

Skeletal animation resource containing a hierarchy of joints.

Definition at line 29 of file Skeleton.hpp.

Member Function Documentation

GetJoints()

const std::vector< Skeleton::Joint > & AeonGames::Skeleton::GetJoints

(

)

const

Get the joint list.

Returns

Const reference to the vector of joints.

Definition at line 124 of file Skeleton.cpp.

LoadFromMemory()

void AeonGames::Skeleton::LoadFromMemory ( const void * aBuffer, size_t aBufferSize )

finalvirtual

Load the skeleton from a memory buffer.

Parameters

aBuffer	Pointer to the data buffer.
aBufferSize	Size of the buffer in bytes.

Implements AeonGames::Resource.

Definition at line 59 of file Skeleton.cpp.

LoadFromPBMsg()

void AeonGames::Skeleton::LoadFromPBMsg

(

const SkeletonMsg &

aSkeletonMsg

)

Load the skeleton from a protobuf message.

Parameters

aSkeletonMsg

The skeleton message to read from.

Definition at line 64 of file Skeleton.cpp.

Unload()

void AeonGames::Skeleton::Unload ( )

finalvirtual

Unload and release skeleton data.

Implements AeonGames::Resource.

Definition at line 119 of file Skeleton.cpp.

---

The documentation for this class was generated from the following files:

• include/aeongames/Skeleton.hpp
• engine/core/Skeleton.cpp
