AeonGames::Texture Class Reference

Represents a 2D texture image resource. More...

#include <aeongames/Texture.hpp>

Inheritance diagram for AeonGames::Texture:

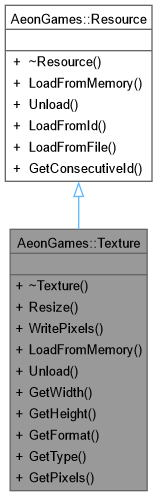

Collaboration diagram for AeonGames::Texture:

Public Types
enum class	Format : uint32_t { Unknown = 0 , RGB , RGBA , BGRA }
	Pixel channel layout format. More...
enum class	Type : uint32_t { Unknown = 0 , UNSIGNED_BYTE , UNSIGNED_SHORT , UNSIGNED_INT_8_8_8_8_REV }
	Pixel component data type. More...

Public Member Functions
DLL	~Texture ()
	Destructor.
DLL void	Resize (uint32_t aWidth, uint32_t aHeight, const uint8_t *aPixels=nullptr, Format aFormat=Format::Unknown, Type aType=Type::Unknown)
	Resizes the texture and optionally replaces pixel data.
DLL void	WritePixels (int32_t aXOffset, int32_t aYOffset, uint32_t aWidth, uint32_t aHeight, Format aFormat, Type aType, const uint8_t *aPixels)
	Writes pixel data into a sub-region of the texture.
DLL void	LoadFromMemory (const void *aBuffer, size_t aBufferSize) final
	Loads texture data from a raw memory buffer.
DLL void	Unload () final
	Releases all texture data and resets the texture to an empty state.
DLL uint32_t	GetWidth () const
	Returns the texture width in pixels.
DLL uint32_t	GetHeight () const
	Returns the texture height in pixels.
DLL Format	GetFormat () const
	Returns the pixel format.
DLL Type	GetType () const
	Returns the pixel component type.
DLL const std::vector< uint8_t > &	GetPixels () const
	Returns a reference to the raw pixel data.
Public Member Functions inherited from AeonGames::Resource
virtual	~Resource ()
	Virtual destructor.
DLL void	LoadFromId (uint32_t aId)
	Load the resource identified by a numeric id.
DLL void	LoadFromFile (const std::string &aFilename)
	Load the resource from a file on disk.
DLL size_t	GetConsecutiveId () const
	Get the Consecutive Id for the resource object.

Detailed Description

Represents a 2D texture image resource.

Provides functionality for loading, resizing, and accessing pixel data in various formats and types. Supports pluggable image decoders.

Definition at line 32 of file Texture.hpp.

Member Enumeration Documentation

Format

enum class AeonGames::Texture::Format : uint32_t

strong

Pixel channel layout format.

Specifies the ordering and number of color channels per pixel.

Enumerator
Unknown	Unspecified or invalid format.
RGB	3-channel red, green, blue.
RGBA	4-channel red, green, blue, alpha.
BGRA	4-channel blue, green, red, alpha.

Definition at line 39 of file Texture.hpp.

Type

enum class AeonGames::Texture::Type : uint32_t

strong

Pixel component data type.

Specifies the data type used for each color channel value.

Enumerator
Unknown	Unspecified or invalid type.
UNSIGNED_BYTE	8-bit unsigned integer per channel.
UNSIGNED_SHORT	16-bit unsigned integer per channel.
UNSIGNED_INT_8_8_8_8_REV	Packed 32-bit unsigned integer with reversed byte order.

Definition at line 50 of file Texture.hpp.

Member Function Documentation

GetFormat()

Texture::Format AeonGames::Texture::GetFormat

(

)

const

Returns the pixel format.

Definition at line 83 of file Texture.cpp.

GetHeight()

uint32_t AeonGames::Texture::GetHeight

(

)

const

Returns the texture height in pixels.

Definition at line 79 of file Texture.cpp.

GetPixels()

const std::vector< uint8_t > & AeonGames::Texture::GetPixels

(

)

const

Returns a reference to the raw pixel data.

Definition at line 92 of file Texture.cpp.

GetType()

Texture::Type AeonGames::Texture::GetType

(

)

const

Returns the pixel component type.

Definition at line 87 of file Texture.cpp.

GetWidth()

uint32_t AeonGames::Texture::GetWidth

(

)

const

Returns the texture width in pixels.

Definition at line 75 of file Texture.cpp.

LoadFromMemory()

void AeonGames::Texture::LoadFromMemory ( const void * aBuffer, size_t aBufferSize )

finalvirtual

Loads texture data from a raw memory buffer.

Parameters

aBuffer	Pointer to the encoded image data.
aBufferSize	Size of the buffer in bytes.

Implements AeonGames::Resource.

Definition at line 97 of file Texture.cpp.

Resize()

void AeonGames::Texture::Resize	(	uint32_t	aWidth,
		uint32_t	aHeight,
		const uint8_t *	aPixels = nullptr,
		Format	aFormat = Format::Unknown,
		Type	aType = Type::Unknown )

Resizes the texture and optionally replaces pixel data.

Parameters

aWidth	New width in pixels.
aHeight	New height in pixels.
aPixels	Optional pointer to new pixel data.
aFormat	Pixel format of the new data. Keeps current format if Unknown.
aType	Pixel type of the new data. Keeps current type if Unknown.

Definition at line 46 of file Texture.cpp.

Unload()

void AeonGames::Texture::Unload ( )

finalvirtual

Releases all texture data and resets the texture to an empty state.

Implements AeonGames::Resource.

Definition at line 102 of file Texture.cpp.

WritePixels()

void AeonGames::Texture::WritePixels	(	int32_t	aXOffset,
		int32_t	aYOffset,
		uint32_t	aWidth,
		uint32_t	aHeight,
		Format	aFormat,
		Type	aType,
		const uint8_t *	aPixels )

Writes pixel data into a sub-region of the texture.

Parameters

aXOffset	Horizontal offset in pixels.
aYOffset	Vertical offset in pixels.
aWidth	Width of the region to write.
aHeight	Height of the region to write.
aFormat	Pixel format of the source data.
aType	Pixel type of the source data.
aPixels	Pointer to the source pixel data.

Todo

Implement format-type translation.

Definition at line 63 of file Texture.cpp.

---

The documentation for this class was generated from the following files:

• include/aeongames/Texture.hpp
• engine/core/Texture.cpp
