AeonGames::SceneWindow Class Reference

Widget for editing and managing a scene and its node hierarchy. More...

#include <C:/Code/AeonEngine/tools/worldeditor/SceneWindow.h>

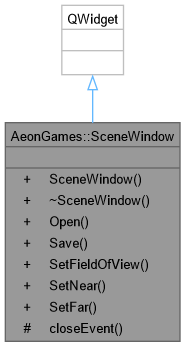

Inheritance diagram for AeonGames::SceneWindow:

Collaboration diagram for AeonGames::SceneWindow:

Public Member Functions
	SceneWindow (QWidget *parent=Q_NULLPTR, Qt::WindowFlags f=Qt::WindowFlags())
	Construct the scene window widget.
virtual	~SceneWindow ()
	Destructor.
void	Open (const std::string &mFilename)
	Open a scene file.
void	Save (const std::string &mFilename) const
	Save the scene to a file.
void	SetFieldOfView (float aFieldOfView)
	Set the camera field of view.
void	SetNear (float aNear)
	Set the near clipping plane distance.
void	SetFar (float aFar)
	Set the far clipping plane distance.

Protected Member Functions
void	closeEvent (QCloseEvent *event) override
	Handle window close events.

Detailed Description

Widget for editing and managing a scene and its node hierarchy.

Definition at line 32 of file SceneWindow.h.

Constructor & Destructor Documentation

SceneWindow()

AeonGames::SceneWindow::SceneWindow	(	QWidget *	parent = Q_NULLPTR,
		Qt::WindowFlags	f = Qt::WindowFlags() )

Construct the scene window widget.

Parameters

parent	Parent widget.
f	Window flags.

Definition at line 42 of file SceneWindow.cpp.

Member Function Documentation

closeEvent()

void AeonGames::SceneWindow::closeEvent ( QCloseEvent * event )

overrideprotected

Handle window close events.

Definition at line 367 of file SceneWindow.cpp.

Open()

void AeonGames::SceneWindow::Open

(

const std::string &

mFilename

)

Open a scene file.

Parameters

mFilename

Path to the scene file.

Definition at line 339 of file SceneWindow.cpp.

Save()

void AeonGames::SceneWindow::Save

(

const std::string &

mFilename

)

const

Save the scene to a file.

Parameters

mFilename

Path to the output file.

Definition at line 348 of file SceneWindow.cpp.

SetFar()

void AeonGames::SceneWindow::SetFar

(

float

aFar

)

Set the far clipping plane distance.

Parameters

aFar	Far plane distance.

Definition at line 363 of file SceneWindow.cpp.

SetFieldOfView()

void AeonGames::SceneWindow::SetFieldOfView

(

float

aFieldOfView

)

Set the camera field of view.

Parameters

aFieldOfView

Field of view in degrees.

Definition at line 355 of file SceneWindow.cpp.

SetNear()

void AeonGames::SceneWindow::SetNear

(

float

aNear

)

Set the near clipping plane distance.

Parameters

aNear

Near plane distance.

Definition at line 359 of file SceneWindow.cpp.

---

The documentation for this class was generated from the following files:

• tools/worldeditor/SceneWindow.h
• tools/worldeditor/SceneWindow.cpp
