3D vector class. More...

#include <aeongames/Vector3.hpp>

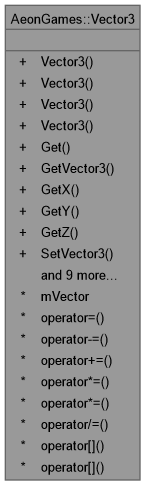

Collaboration diagram for AeonGames::Vector3:

Public Member Functions
DLL	Vector3 ()
	Default constructor.
DLL	Vector3 (const float *const aVector)
	Constructor.
DLL	Vector3 (const void *const aVector, const uint32_t aStride)
	Constructor from raw memory with stride.
DLL	Vector3 (float aX, float aY, float aZ)
	Constructor.
DLL void	Get (float *aData) const
	Copy vector data to an external float array.
DLL const float *const	GetVector3 () const
	Get a pointer to the internal vector data.
DLL const float &	GetX () const
	Get the X component.
DLL const float &	GetY () const
	Get the Y component.
DLL const float &	GetZ () const
	Get the Z component.
DLL void	SetVector3 (const float *const aVector)
	Set the vector from a float array.
DLL void	SetVector3 (const void *const aVector, const uint32_t aStride)
	Set the vector from raw memory with stride.
DLL float	GetLenghtSquared () const
	Get the squared length of the vector.
DLL float	GetLenght () const
	Get the length of the vector.
DLL size_t	GetMaxAxisIndex () const
	Get the index of the axis with the largest absolute value.
DLL size_t	GetMinAxisIndex () const
	Get the index of the axis with the smallest absolute value.
DLL float	GetMaxAxisLenght () const
	Get the absolute value of the largest axis component.
DLL float	GetMinAxisLenght () const
	Get the absolute value of the smallest axis component.
DLL float	GetDistanceToPlane (const Plane &aPlane) const
	Get the signed distance from this point to a plane.
DLL bool	IsZero () const
	Check whether all components are zero.

Operators
float	mVector [3]
	X,Y,Z.
DLL Vector3 &	operator= (const float *aLhs)
	Assign from a raw float array.
DLL Vector3 &	operator-= (const Vector3 &aLhs)
	Subtract a vector from this vector.
DLL Vector3 &	operator+= (const Vector3 &aLhs)
	Add a vector to this vector.
DLL Vector3 &	operator*= (const float aLhs)
	Scale this vector by a scalar.
DLL Vector3 &	operator*= (const Vector3 &aLhs)
	Component-wise multiply by another vector.
DLL Vector3 &	operator/= (const float aLhs)
	Divide this vector by a scalar.
DLL float	operator[] (const size_t aIndex) const
	Access a component by index (const).
DLL float &	operator[] (const size_t aIndex)
	Access a component by index.

Detailed Description

3D vector class.

Definition at line 31 of file Vector3.hpp.

Constructor & Destructor Documentation

◆ Vector3() [1/4]

AeonGames::Vector3::Vector3 ( )

Default constructor.

Definition at line 22 of file Vector3.cpp.

◆ Vector3() [2/4]

AeonGames::Vector3::Vector3 ( const float *const aVector )

Constructor.

Parameters

aVector a float pointer or array containing vector data.

Note: This is the same format the values are internally stored and what Vector3::GetVector3 returns.

Definition at line 27 of file Vector3.cpp.

◆ Vector3() [3/4]

AeonGames::Vector3::Vector3	(	const void *const	aVector,
		const uint32_t	aStride )

Constructor from raw memory with stride.

Parameters

aVector	Pointer to raw memory containing vector data.
aStride	Byte stride between consecutive float components.

Definition at line 37 of file Vector3.cpp.

◆ Vector3() [4/4]

AeonGames::Vector3::Vector3	(	float	aX,
		float	aY,
		float	aZ )

Constructor.

Parameters

aX	X component.
aY	Y component.
aZ	Z component.

Definition at line 90 of file Vector3.cpp.

Member Function Documentation

◆ Get()

void AeonGames::Vector3::Get ( float * aData ) const

Copy vector data to an external float array.

Parameters

[out] aData Pointer to a float array of at least 3 elements.

Definition at line 97 of file Vector3.cpp.

◆ GetDistanceToPlane()

float AeonGames::Vector3::GetDistanceToPlane ( const Plane & aPlane ) const

Get the signed distance from this point to a plane.

Parameters

aPlane The plane to measure distance to.

Returns: Signed distance to the plane.

Definition at line 85 of file Vector3.cpp.

◆ GetLenght()

float AeonGames::Vector3::GetLenght ( ) const

Get the length of the vector.

Returns: Magnitude of the vector.

Definition at line 54 of file Vector3.cpp.

◆ GetLenghtSquared()

float AeonGames::Vector3::GetLenghtSquared ( ) const

Get the squared length of the vector.

Returns: Squared magnitude of the vector.

Definition at line 49 of file Vector3.cpp.

◆ GetMaxAxisIndex()

size_t AeonGames::Vector3::GetMaxAxisIndex ( ) const

Get the index of the axis with the largest absolute value.

Returns: Index (0=X, 1=Y, 2=Z) of the largest axis.

Definition at line 59 of file Vector3.cpp.

◆ GetMaxAxisLenght()

float AeonGames::Vector3::GetMaxAxisLenght ( ) const

Get the absolute value of the largest axis component.

Returns: Absolute value of the largest component.

Definition at line 75 of file Vector3.cpp.

◆ GetMinAxisIndex()

size_t AeonGames::Vector3::GetMinAxisIndex ( ) const

Get the index of the axis with the smallest absolute value.

Returns: Index (0=X, 1=Y, 2=Z) of the smallest axis.

Definition at line 67 of file Vector3.cpp.

◆ GetMinAxisLenght()

float AeonGames::Vector3::GetMinAxisLenght ( ) const

Get the absolute value of the smallest axis component.

Returns: Absolute value of the smallest component.

Definition at line 80 of file Vector3.cpp.

◆ GetVector3()

const float *const AeonGames::Vector3::GetVector3 ( ) const

Get a pointer to the internal vector data.

Returns: Pointer to the float array containing X,Y,Z components.

Definition at line 102 of file Vector3.cpp.

◆ GetX()

const float & AeonGames::Vector3::GetX ( ) const

Get the X component.

Returns: Reference to the X component.

Definition at line 107 of file Vector3.cpp.

◆ GetY()

const float & AeonGames::Vector3::GetY ( ) const

Get the Y component.

Returns: Reference to the Y component.

Definition at line 112 of file Vector3.cpp.

◆ GetZ()

const float & AeonGames::Vector3::GetZ ( ) const

Get the Z component.

Returns: Reference to the Z component.

Definition at line 118 of file Vector3.cpp.

◆ IsZero()

bool AeonGames::Vector3::IsZero ( ) const

Check whether all components are zero.

Returns: true if the vector is the zero vector.

Definition at line 205 of file Vector3.cpp.

◆ operator*=() [1/2]

Vector3 & AeonGames::Vector3::operator*= ( const float aLhs )

Scale this vector by a scalar.

Definition at line 181 of file Vector3.cpp.

◆ operator*=() [2/2]

Vector3 & AeonGames::Vector3::operator*= ( const Vector3 & aLhs )

Component-wise multiply by another vector.

Definition at line 189 of file Vector3.cpp.

◆ operator+=()

Vector3 & AeonGames::Vector3::operator+= ( const Vector3 & aLhs )

Add a vector to this vector.

Definition at line 166 of file Vector3.cpp.

◆ operator-=()

Vector3 & AeonGames::Vector3::operator-= ( const Vector3 & aLhs )

Subtract a vector from this vector.

Definition at line 149 of file Vector3.cpp.

◆ operator/=()

Vector3 & AeonGames::Vector3::operator/= ( const float aLhs )

Divide this vector by a scalar.

Definition at line 197 of file Vector3.cpp.

◆ operator=()

Vector3 & AeonGames::Vector3::operator= ( const float * aLhs )

Assign from a raw float array.

Definition at line 143 of file Vector3.cpp.

◆ operator[]() [1/2]

float & AeonGames::Vector3::operator[] ( const size_t aIndex )

Access a component by index.

Definition at line 137 of file Vector3.cpp.

◆ operator[]() [2/2]

float AeonGames::Vector3::operator[] ( const size_t aIndex ) const

Access a component by index (const).

Definition at line 131 of file Vector3.cpp.

◆ SetVector3() [1/2]

void AeonGames::Vector3::SetVector3 ( const float *const aVector )

Set the vector from a float array.

Parameters

aVector Pointer to a float array containing X,Y,Z values.

Definition at line 32 of file Vector3.cpp.

◆ SetVector3() [2/2]

void AeonGames::Vector3::SetVector3	(	const void *const	aVector,
		const uint32_t	aStride )

Set the vector from raw memory with stride.

Parameters

aVector	Pointer to raw memory containing vector data.
aStride	Byte stride between consecutive float components.

Definition at line 42 of file Vector3.cpp.

Member Data Documentation

◆ mVector

float AeonGames::Vector3::mVector[3]

protected

X,Y,Z.

Definition at line 135 of file Vector3.hpp.

The documentation for this class was generated from the following files:

include/aeongames/Vector3.hpp
engine/math/Vector3.cpp
