AeonGames::Material Class Reference

Represents a surface material with uniform properties and texture samplers. More...

#include <aeongames/Material.hpp>

Inheritance diagram for AeonGames::Material:

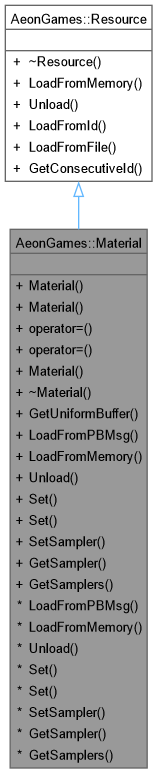

Collaboration diagram for AeonGames::Material:

Public Types
using	UniformValue = std::variant<uint32_t, int32_t, float, Vector2, Vector3, Vector4, Matrix4x4>
	Variant type holding any supported uniform value.
using	UniformKeyValue = std::tuple<std::string, UniformValue>
	Key-value pair mapping a uniform name to its value.
using	SamplerKeyValue = std::tuple<uint32_t, ResourceId>
	Key-value pair mapping a sampler binding index to an image resource id.

Public Member Functions
DLL	Material ()
	Default constructor.
DLL	Material (const Material &aMaterial)
	The Copy Contsructor is used for virtual copying.
DLL Material &	operator= (const Material &aMaterial)
	Assignment operator due to rule of zero/three/five.
Material &	operator= (Material &&)=delete
	No move assignment allowed.
	Material (Material &&)=delete
	No move allowed.
DLL	~Material () final
	Destructor.
DLL const std::vector< uint8_t > &	GetUniformBuffer () const
	Get the raw uniform buffer.
Loaders
DLL void	LoadFromPBMsg (const MaterialMsg &aMaterialMsg)
	Load material data from a protobuf message.
DLL void	LoadFromMemory (const void *aBuffer, size_t aBufferSize) final
	Load material data from a raw memory buffer.
DLL void	Unload () final
	Unload material data and release resources.
Property and Sampler Setters
DLL void	Set (size_t aIndex, const UniformValue &aValue)
	Set a uniform value by index.
DLL void	Set (const UniformKeyValue &aValue)
	Set a uniform value by name-value pair.
DLL void	SetSampler (const std::string &aName, const ResourceId &aValue)
	Set a sampler binding by name.
Property and Sampler Getters
DLL ResourceId	GetSampler (const std::string &aName)
	Get the resource id of a sampler by name.
DLL const std::vector< std::tuple< uint32_t, ResourceId > > &	GetSamplers () const
	Get all sampler bindings.
Public Member Functions inherited from AeonGames::Resource
virtual	~Resource ()
	Virtual destructor.
DLL void	LoadFromId (uint32_t aId)
	Load the resource identified by a numeric id.
DLL void	LoadFromFile (const std::string &aFilename)
	Load the resource from a file on disk.
DLL size_t	GetConsecutiveId () const
	Get the Consecutive Id for the resource object.

Detailed Description

Represents a surface material with uniform properties and texture samplers.

Definition at line 37 of file Material.hpp.

Member Typedef Documentation

SamplerKeyValue

using AeonGames::Material::SamplerKeyValue = std::tuple<uint32_t, ResourceId>

Key-value pair mapping a sampler binding index to an image resource id.

Definition at line 45 of file Material.hpp.

UniformKeyValue

using AeonGames::Material::UniformKeyValue = std::tuple<std::string, UniformValue>

Key-value pair mapping a uniform name to its value.

Definition at line 43 of file Material.hpp.

UniformValue

using AeonGames::Material::UniformValue = std::variant<uint32_t, int32_t, float, Vector2, Vector3, Vector4, Matrix4x4>

Variant type holding any supported uniform value.

Definition at line 41 of file Material.hpp.

Constructor & Destructor Documentation

Material()

AeonGames::Material::Material

(

const Material &

aMaterial

)

The Copy Contsructor is used for virtual copying.

Definition at line 37 of file Material.cpp.

Member Function Documentation

GetSampler()

ResourceId AeonGames::Material::GetSampler

(

const std::string &

aName

)

Get the resource id of a sampler by name.

Parameters

aName

Sampler name.

Returns

Resource id bound to the sampler.

Definition at line 250 of file Material.cpp.

GetSamplers()

const std::vector< std::tuple< uint32_t, ResourceId > > & AeonGames::Material::GetSamplers

(

)

const

Get all sampler bindings.

Returns

Const reference to the vector of sampler key-value pairs.

Definition at line 245 of file Material.cpp.

GetUniformBuffer()

const std::vector< uint8_t > & AeonGames::Material::GetUniformBuffer

(

)

const

Get the raw uniform buffer.

Returns

Const reference to the uniform data byte vector.

Definition at line 45 of file Material.cpp.

LoadFromMemory()

void AeonGames::Material::LoadFromMemory ( const void * aBuffer, size_t aBufferSize )

finalvirtual

Load material data from a raw memory buffer.

Parameters

aBuffer	Pointer to the buffer.
aBufferSize	Size of the buffer in bytes.

Implements AeonGames::Resource.

Definition at line 186 of file Material.cpp.

LoadFromPBMsg()

void AeonGames::Material::LoadFromPBMsg

(

const MaterialMsg &

aMaterialMsg

)

Load material data from a protobuf message.

Parameters

aMaterialMsg

The protobuf message to load from.

Definition at line 191 of file Material.cpp.

operator=()

Material & AeonGames::Material::operator=

(

const Material &

aMaterial

)

Assignment operator due to rule of zero/three/five.

Definition at line 38 of file Material.cpp.

Set() [1/2]

void AeonGames::Material::Set

(

const UniformKeyValue &

aValue

)

Set a uniform value by name-value pair.

Parameters

aValue

Key-value pair with the uniform name and value.

Definition at line 210 of file Material.cpp.

Set() [2/2]

void AeonGames::Material::Set	(	size_t	aIndex,
		const UniformValue &	aValue )

Set a uniform value by index.

Parameters

aIndex	Index of the uniform variable.
aValue	New value to assign.

Definition at line 205 of file Material.cpp.

SetSampler()

void AeonGames::Material::SetSampler	(	const std::string &	aName,
		const ResourceId &	aValue )

Set a sampler binding by name.

Parameters

aName	Sampler name.
aValue	Resource id of the image to bind.

Definition at line 231 of file Material.cpp.

Unload()

void AeonGames::Material::Unload ( )

finalvirtual

Unload material data and release resources.

Implements AeonGames::Resource.

Definition at line 265 of file Material.cpp.

---

The documentation for this class was generated from the following files:

• include/aeongames/Material.hpp
• engine/core/Material.cpp
