AeonGames::Matrix3x3 Class Reference

3 by 3 matrix in colum mayor order. More...

#include <aeongames/Matrix3x3.hpp>

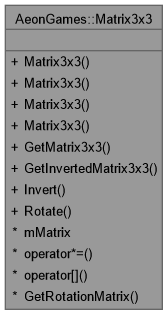

Collaboration diagram for AeonGames::Matrix3x3:

Public Member Functions
DLL	Matrix3x3 ()
	Default constructor.
DLL	Matrix3x3 (const Transform &aTransform)
	Constructor.
DLL	Matrix3x3 (const float *const aMatrix)
	Construct from a float array.
DLL	Matrix3x3 (const std::initializer_list< const float > aList)
	Construct from an initializer list.
DLL const float *const	GetMatrix3x3 () const
	Get a pointer to the internal matrix data.
DLL const Matrix3x3	GetInvertedMatrix3x3 ()
	Get the inverted matrix.
DLL Matrix3x3 &	Invert ()
	Invert this matrix in place.
DLL Matrix3x3 &	Rotate (float angle, float x, float y, float z)
	Apply a rotation to this matrix.

Operators
float	mMatrix [9]
	Lineal row mayor matrix.
DLL Matrix3x3 &	operator*= (const Matrix3x3 &lhs)
	Multiply this matrix by another matrix.
DLL const float	operator[] (size_t aIndex) const
	Access a matrix element by index.
static DLL const Matrix3x3	GetRotationMatrix (float angle, float x, float y, float z)
	Constructs the rotation matrix defined by the axis-angle provided.

Detailed Description

3 by 3 matrix in colum mayor order.

Definition at line 32 of file Matrix3x3.hpp.

Constructor & Destructor Documentation

Matrix3x3() [1/4]

AeonGames::Matrix3x3::Matrix3x3

(

)

Default constructor.

Definition at line 25 of file Matrix3x3.cpp.

Matrix3x3() [2/4]

AeonGames::Matrix3x3::Matrix3x3

(

const Transform &

aTransform

)

Constructor.

Parameters

aTransform

Transform from which to initialize the matrix. Only Scale and Rotation are used.

Definition at line 27 of file Matrix3x3.cpp.

Matrix3x3() [3/4]

AeonGames::Matrix3x3::Matrix3x3

(

const float *const

aMatrix

)

Construct from a float array.

Parameters

aMatrix

Pointer to a float array of at least 9 elements in column-major order.

Definition at line 31 of file Matrix3x3.cpp.

Matrix3x3() [4/4]

AeonGames::Matrix3x3::Matrix3x3

(

const std::initializer_list< const float >

aList

)

Construct from an initializer list.

Parameters

aList

Initializer list of float values for the matrix elements.

Definition at line 36 of file Matrix3x3.cpp.

Member Function Documentation

GetInvertedMatrix3x3()

const Matrix3x3 AeonGames::Matrix3x3::GetInvertedMatrix3x3

(

)

Get the inverted matrix.

Returns

A new Matrix3x3 that is the inverse of this matrix.

Definition at line 56 of file Matrix3x3.cpp.

GetMatrix3x3()

const float *const AeonGames::Matrix3x3::GetMatrix3x3

(

)

const

Get a pointer to the internal matrix data.

Returns

Pointer to the 9 float elements of the matrix.

Definition at line 45 of file Matrix3x3.cpp.

GetRotationMatrix()

const Matrix3x3 AeonGames::Matrix3x3::GetRotationMatrix ( float angle, float x, float y, float z )

static

Constructs the rotation matrix defined by the axis-angle provided.

The Matrix returned is a 3x3 matrix constructed using the same formula glRotate* uses.

Parameters

angle	[in] Angle in degrees of rotation.
x	[in] X element of axis of rotation.
y	[in] Y element of axis of rotation.
z	[in] Z element of axis of rotation.

Returns

Rotation matrix.

Definition at line 101 of file Matrix3x3.cpp.

Invert()

Matrix3x3 & AeonGames::Matrix3x3::Invert

(

)

Invert this matrix in place.

Returns

Reference to this matrix after inversion.

Definition at line 50 of file Matrix3x3.cpp.

operator*=()

Matrix3x3 & AeonGames::Matrix3x3::operator*=

(

const Matrix3x3 &

lhs

)

Multiply this matrix by another matrix.

Definition at line 69 of file Matrix3x3.cpp.

operator[]()

const float AeonGames::Matrix3x3::operator[]

(

size_t

aIndex

)

const

Access a matrix element by index.

Definition at line 95 of file Matrix3x3.cpp.

Rotate()

Matrix3x3 & AeonGames::Matrix3x3::Rotate	(	float	angle,
		float	x,
		float	y,
		float	z )

Apply a rotation to this matrix.

Parameters

angle	Angle in degrees of rotation.
x	X component of the axis of rotation.
y	Y component of the axis of rotation.
z	Z component of the axis of rotation.

Returns

Reference to this matrix after rotation.

Definition at line 61 of file Matrix3x3.cpp.

Member Data Documentation

mMatrix

float AeonGames::Matrix3x3::mMatrix[9]

protected

Lineal row mayor matrix.

Definition at line 89 of file Matrix3x3.hpp.

---

The documentation for this class was generated from the following files:

• include/aeongames/Matrix3x3.hpp
• engine/math/Matrix3x3.cpp
