Component class for any object that requires space transformations. More...

#include <aeongames/Transform.hpp>

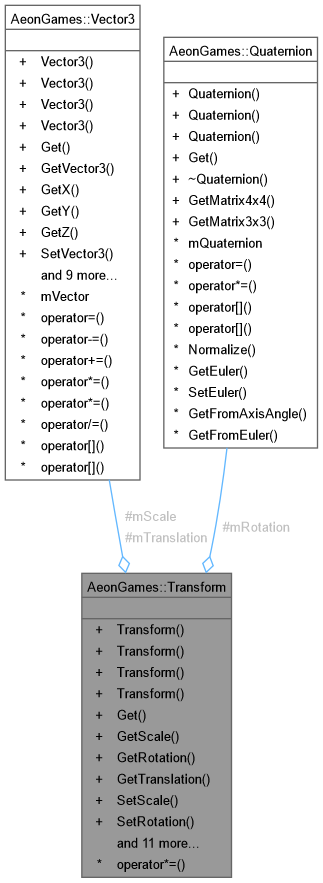

Collaboration diagram for AeonGames::Transform:

Public Member Functions
DLL	Transform (const Vector3 &aScale, const Quaternion &aRotation, const Vector3 &aTranslation)
	Construct from scale, rotation quaternion, and translation.
DLL	Transform (const Vector3 &aScale, const Vector3 &aRotation, const Vector3 &aTranslation)
	Construct from scale, rotation Euler angles, and translation.
DLL	Transform (const float *aData)
	Construct from a float array.
DLL void	Get (float *aData) const
	Copy the transform data to a float array.
DLL const Vector3 &	GetScale () const
	Get the scale vector.
DLL const Quaternion &	GetRotation () const
	Get the rotation quaternion.
DLL const Vector3 &	GetTranslation () const
	Get the translation vector.
DLL void	SetScale (const Vector3 &aScale)
	Set transform scale vector.
DLL void	SetRotation (const Quaternion &aRotation)
	Set the rotation quaternion.
DLL void	SetTranslation (const Vector3 &aTranslation)
	Set the translation vector.
DLL void	Move (float x, float y, float z)
	Adds the provided vector to the position vector.
DLL void	MoveInObjectSpace (float x, float y, float z)
	Moves the transfrom relative to its own axes.
DLL void	RotateObjectSpace (float angle, float x, float y, float z)
	Rotate in Object Space.
DLL void	RotateInertialSpace (float angle, float x, float y, float z)
	Rotate in Inertial Space.
DLL void	ResetRotation ()
	Clear rotation.
DLL const Matrix4x4	GetMatrix () const
	Constructs a transformation matrix from the SRT variables.
DLL const Matrix3x3	GetScaleRotationMatrix () const
	Constructs a transformation matrix from only the SR variables.
DLL const Matrix4x4	GetInvertedMatrix () const
	Constructs an inverted transformation matrix from the SRT variables.
DLL Transform &	Invert ()
	Invert this transform in place.
DLL const Transform	GetInverted () const
	Get the inverted transform.

Operators
Vector3	mScale {1, 1, 1}
	Scale rotation and translation.
Quaternion	mRotation {1, 0, 0, 0}
	Rotation quaternion.
Vector3	mTranslation {0, 0, 0}
	Translation vector.
DLL Transform &	operator*= (const Transform &lhs)
	Combine this transform with another transform.

Detailed Description

Component class for any object that requires space transformations.

Definition at line 33 of file Transform.hpp.

Constructor & Destructor Documentation

◆ Transform() [1/3]

AeonGames::Transform::Transform	(	const Vector3 &	aScale,
		const Quaternion &	aRotation,
		const Vector3 &	aTranslation )

Construct from scale, rotation quaternion, and translation.

Parameters

aScale	The scale vector.
aRotation	The rotation quaternion.
aTranslation	The translation vector.

Definition at line 27 of file Transform.cpp.

◆ Transform() [2/3]

AeonGames::Transform::Transform	(	const Vector3 &	aScale,
		const Vector3 &	aRotation,
		const Vector3 &	aTranslation )

Construct from scale, rotation Euler angles, and translation.

Parameters

aScale	The scale vector.
aRotation	The rotation as Euler angles in degrees.
aTranslation	The translation vector.

Definition at line 32 of file Transform.cpp.

◆ Transform() [3/3]

AeonGames::Transform::Transform ( const float * aData )

Construct from a float array.

Parameters

aData Pointer to a float array containing scale, rotation, and translation data.

Definition at line 37 of file Transform.cpp.

Member Function Documentation

◆ Get()

void AeonGames::Transform::Get ( float * aData ) const

Copy the transform data to a float array.

Parameters

aData Pointer to a float array to receive the transform data.

Definition at line 42 of file Transform.cpp.

◆ GetInverted()

const Transform AeonGames::Transform::GetInverted ( ) const

Get the inverted transform.

Returns: A new Transform that is the inverse of this transform.

Definition at line 173 of file Transform.cpp.

◆ GetInvertedMatrix()

const Matrix4x4 AeonGames::Transform::GetInvertedMatrix ( ) const

Constructs an inverted transformation matrix from the SRT variables.

Returns: Inverted transformation matrix.

Note: This matrix is useful as a view matrix.

Definition at line 150 of file Transform.cpp.

◆ GetMatrix()

const Matrix4x4 AeonGames::Transform::GetMatrix ( ) const

Constructs a transformation matrix from the SRT variables.

Returns: Transformation matrix.

Definition at line 102 of file Transform.cpp.

◆ GetRotation()

const Quaternion & AeonGames::Transform::GetRotation ( ) const

Get the rotation quaternion.

Returns: Const reference to the rotation quaternion.

Definition at line 53 of file Transform.cpp.

◆ GetScale()

const Vector3 & AeonGames::Transform::GetScale ( ) const

Get the scale vector.

Returns: Const reference to the scale vector.

Definition at line 49 of file Transform.cpp.

◆ GetScaleRotationMatrix()

const Matrix3x3 AeonGames::Transform::GetScaleRotationMatrix ( ) const

Constructs a transformation matrix from only the SR variables.

Returns: 3x3 transformation matrix.

Definition at line 130 of file Transform.cpp.

◆ GetTranslation()

const Vector3 & AeonGames::Transform::GetTranslation ( ) const

Get the translation vector.

Returns: Const reference to the translation vector.

Definition at line 57 of file Transform.cpp.

◆ Invert()

Transform & AeonGames::Transform::Invert ( )

Invert this transform in place.

Returns: Reference to this transform after inversion.

Definition at line 160 of file Transform.cpp.

◆ Move()

void AeonGames::Transform::Move	(	float	x,
		float	y,
		float	z )

Adds the provided vector to the position vector.

Parameters

x	[in] X move vector value.
y	[in] Y move vector value.
z	[in] Z move vector value.

Definition at line 87 of file Transform.cpp.

◆ MoveInObjectSpace()

void AeonGames::Transform::MoveInObjectSpace	(	float	x,
		float	y,
		float	z )

Moves the transfrom relative to its own axes.

Parameters

x	[in] X move vector value.
y	[in] Y move vector value.
z	[in] Z move vector value.

Definition at line 155 of file Transform.cpp.

◆ operator*=()

Transform & AeonGames::Transform::operator*= ( const Transform & lhs )

Combine this transform with another transform.

Definition at line 178 of file Transform.cpp.

◆ ResetRotation()

void AeonGames::Transform::ResetRotation ( )

Clear rotation.

Definition at line 94 of file Transform.cpp.

◆ RotateInertialSpace()

void AeonGames::Transform::RotateInertialSpace	(	float	angle,
		float	x,
		float	y,
		float	z )

Rotate in Inertial Space.

Parameters

angle	[in] Angle in degrees of rotation.
x	[in] X element of axis of rotation.
y	[in] Y element of axis of rotation.
z	[in] Z element of axis of rotation.

Definition at line 82 of file Transform.cpp.

◆ RotateObjectSpace()

void AeonGames::Transform::RotateObjectSpace	(	float	angle,
		float	x,
		float	y,
		float	z )

Rotate in Object Space.

Parameters

angle	[in] Angle in degrees of rotation.
x	[in] X element of axis of rotation.
y	[in] Y element of axis of rotation.
z	[in] Z element of axis of rotation.

Definition at line 77 of file Transform.cpp.

◆ SetRotation()

void AeonGames::Transform::SetRotation ( const Quaternion & aRotation )

Set the rotation quaternion.

Parameters

aRotation The new rotation quaternion.

Definition at line 67 of file Transform.cpp.

◆ SetScale()

void AeonGames::Transform::SetScale ( const Vector3 & aScale )

Set transform scale vector.

Definition at line 62 of file Transform.cpp.

◆ SetTranslation()

void AeonGames::Transform::SetTranslation ( const Vector3 & aTranslation )

Set the translation vector.

Parameters

aTranslation The new translation vector.

Definition at line 72 of file Transform.cpp.

Member Data Documentation

◆ mRotation

Quaternion AeonGames::Transform::mRotation {1, 0, 0, 0}

protected

Rotation quaternion.

Definition at line 155 of file Transform.hpp.

◆ mScale

Vector3 AeonGames::Transform::mScale {1, 1, 1}

protected

Scale rotation and translation.

Definition at line 154 of file Transform.hpp.

◆ mTranslation

Vector3 AeonGames::Transform::mTranslation {0, 0, 0}

protected

Translation vector.

Definition at line 156 of file Transform.hpp.

The documentation for this class was generated from the following files:

include/aeongames/Transform.hpp
engine/math/Transform.cpp
