AeonGames::Component Class Reference

Abstract base class for node components. More...

#include <aeongames/Component.hpp>

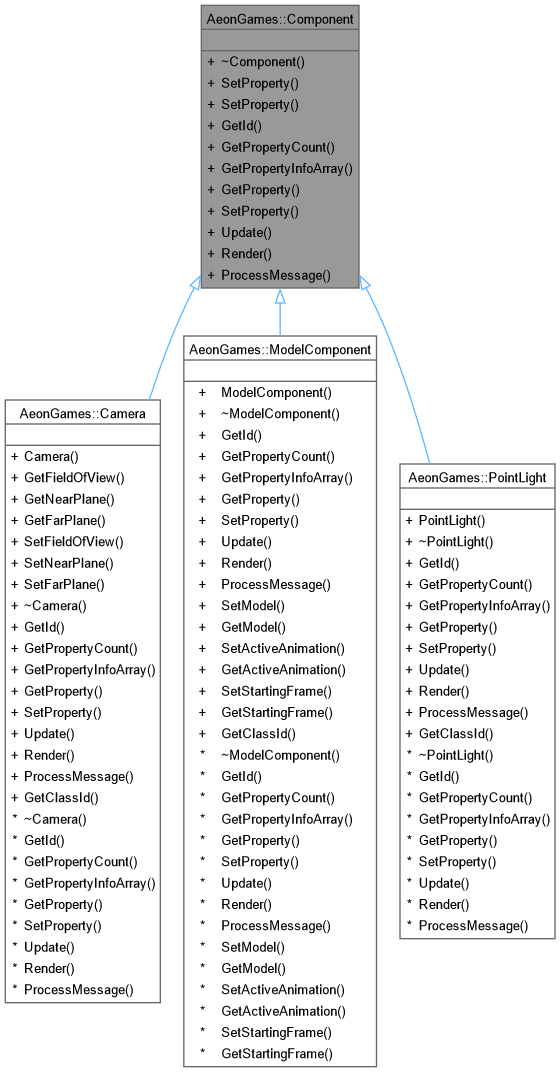

Inheritance diagram for AeonGames::Component:

Collaboration diagram for AeonGames::Component:

Public Member Functions
virtual DLL	~Component ()=0
	Pure virtual destructor.
DLL void	SetProperty (const StringId &aId, const Property &aProperty)
	Set a property by its StringId identifier.
DLL void	SetProperty (const std::string &aId, const Property &aProperty)
	Set a property by its string name.
virtual const StringId &	GetId () const =0
	Get the unique identifier for this component type.
virtual size_t	GetPropertyCount () const =0
	Get the number of properties exposed by this component.
virtual const StringId *	GetPropertyInfoArray () const =0
	Get the array of property identifiers.
virtual Property	GetProperty (const StringId &aId) const =0
	Get the value of a property.
virtual void	SetProperty (uint32_t aId, const Property &aProperty)=0
	Set the value aProperty for the property identified by aId.
virtual void	Update (Node &aNode, double aDelta)=0
	Update the component state.
virtual void	Render (const Node &aNode, Renderer &aRenderer, void *aWindowId)=0
	Render the component.
virtual void	ProcessMessage (Node &aNode, uint32_t aMessageType, const void *aMessageData)=0
	Process an incoming message.

Detailed Description

Abstract base class for node components.

Components encapsulate reusable behavior and data that can be attached to a Node. Concrete implementations provide domain-specific logic such as rendering, physics, or audio.

Definition at line 38 of file Component.hpp.

Member Function Documentation

GetId()

virtual const StringId & AeonGames::Component::GetId ( ) const

pure virtual

Get the unique identifier for this component type.

Returns

Reference to the component's StringId.

Implemented in AeonGames::Camera, AeonGames::ModelComponent, and AeonGames::PointLight.

GetProperty()

virtual Property AeonGames::Component::GetProperty ( const StringId & aId ) const

pure virtual

Get the value of a property.

Parameters

aId	Identifier of the property to retrieve.

Returns

The property value.

Implemented in AeonGames::Camera, AeonGames::ModelComponent, and AeonGames::PointLight.

GetPropertyCount()

virtual size_t AeonGames::Component::GetPropertyCount ( ) const

pure virtual

Get the number of properties exposed by this component.

Returns

Property count.

Implemented in AeonGames::Camera, AeonGames::ModelComponent, and AeonGames::PointLight.

GetPropertyInfoArray()

virtual const StringId * AeonGames::Component::GetPropertyInfoArray ( ) const

pure virtual

Get the array of property identifiers.

Returns

Pointer to the first element of the property info array.

Implemented in AeonGames::Camera, AeonGames::ModelComponent, and AeonGames::PointLight.

ProcessMessage()

virtual void AeonGames::Component::ProcessMessage ( Node & aNode, uint32_t aMessageType, const void * aMessageData )

pure virtual

Process an incoming message.

Parameters

aNode	Node this component is attached to.
aMessageType	Type identifier of the message.
aMessageData	Pointer to message-specific data.

Implemented in AeonGames::Camera, AeonGames::ModelComponent, and AeonGames::PointLight.

Render()

virtual void AeonGames::Component::Render ( const Node & aNode, Renderer & aRenderer, void * aWindowId )

pure virtual

Render the component.

Parameters

aNode	Node this component is attached to.
aRenderer	Renderer used for drawing.
aWindowId	Platform-specific window identifier.

Implemented in AeonGames::Camera, AeonGames::ModelComponent, and AeonGames::PointLight.

SetProperty() [1/3]

void AeonGames::Component::SetProperty	(	const std::string &	aId,
		const Property &	aProperty )

Set a property by its string name.

Parameters

aId	Name of the property to set.
aProperty	Value to assign to the property.

Definition at line 27 of file Component.cpp.

SetProperty() [2/3]

void AeonGames::Component::SetProperty	(	const StringId &	aId,
		const Property &	aProperty )

Set a property by its StringId identifier.

Parameters

aId	Identifier of the property to set.
aProperty	Value to assign to the property.

Definition at line 23 of file Component.cpp.

SetProperty() [3/3]

virtual void AeonGames::Component::SetProperty ( uint32_t aId, const Property & aProperty )

pure virtual

Set the value aProperty for the property identified by aId.

Note

If the type of the value passed does not match the expected types no change should be made.

Implemented in AeonGames::Camera, AeonGames::ModelComponent, and AeonGames::PointLight.

Update()

virtual void AeonGames::Component::Update ( Node & aNode, double aDelta )

pure virtual

Update the component state.

Parameters

aNode	Node this component is attached to.
aDelta	Elapsed time since the last update, in seconds.

Implemented in AeonGames::Camera, AeonGames::ModelComponent, and AeonGames::PointLight.

---

The documentation for this class was generated from the following files:

• include/aeongames/Component.hpp
• engine/core/Component.cpp
