Component that attaches a 3D model with skeletal animation support to a scene node. More...

#include <C:/Code/AeonEngine/engine/components/ModelComponent.h>

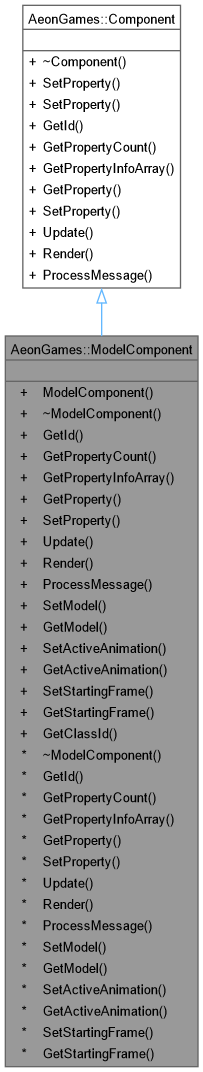

Inheritance diagram for AeonGames::ModelComponent:

Collaboration diagram for AeonGames::ModelComponent:

Public Member Functions
	ModelComponent ()
	Default constructor.
Overrides
const StringId &	GetId () const final
	Get the unique identifier for this component type.
size_t	GetPropertyCount () const final
	Get the number of properties exposed by this component.
const StringId *	GetPropertyInfoArray () const final
	Get the array of property identifiers.
Property	GetProperty (const StringId &aId) const final
	Get the value of a property.
void	SetProperty (uint32_t, const Property &aProperty) final
	Set the value aProperty for the property identified by aId.
void	Update (Node &aNode, double aDelta) final
	Update the component state.
void	Render (const Node &aNode, Renderer &aRenderer, void *aWindowId) final
	Render the component.
void	ProcessMessage (Node &aNode, uint32_t aMessageType, const void *aMessageData) final
	Process an incoming message.
Properties
void	SetModel (const ResourceId &aModel)
	Sets the model resource.
const ResourceId &	GetModel () const noexcept
	Returns the current model resource identifier.
void	SetActiveAnimation (size_t aActiveAnimation) noexcept
	Sets the active animation index.
const size_t &	GetActiveAnimation () const noexcept
	Returns the active animation index.
void	SetStartingFrame (double aAnimationDelta) noexcept
	Sets the starting frame for the active animation.
const double &	GetStartingFrame () const noexcept
	Returns the starting frame for the active animation.
Public Member Functions inherited from AeonGames::Component
virtual DLL	~Component ()=0
	Pure virtual destructor.
DLL void	SetProperty (const StringId &aId, const Property &aProperty)
	Set a property by its StringId identifier.
DLL void	SetProperty (const std::string &aId, const Property &aProperty)
	Set a property by its string name.

Static Public Member Functions
static const StringId &	GetClassId ()
	Returns the class identifier for the ModelComponent.

Detailed Description

Component that attaches a 3D model with skeletal animation support to a scene node.

Definition at line 29 of file ModelComponent.h.

Member Function Documentation

◆ GetActiveAnimation()

const size_t & AeonGames::ModelComponent::GetActiveAnimation ( ) const

noexcept

Returns the active animation index.

Definition at line 133 of file ModelComponent.cpp.

◆ GetClassId()

const StringId & AeonGames::ModelComponent::GetClassId ( )

static

Returns the class identifier for the ModelComponent.

Definition at line 37 of file ModelComponent.cpp.

◆ GetId()

const StringId & AeonGames::ModelComponent::GetId ( ) const

finalvirtual

Get the unique identifier for this component type.

Returns: Reference to the component's StringId.

Implements AeonGames::Component.

Definition at line 45 of file ModelComponent.cpp.

◆ GetModel()

const ResourceId & AeonGames::ModelComponent::GetModel ( ) const

noexcept

Returns the current model resource identifier.

Definition at line 122 of file ModelComponent.cpp.

◆ GetProperty()

Property AeonGames::ModelComponent::GetProperty ( const StringId & aId ) const

finalvirtual

Get the value of a property.

Parameters

aId	Identifier of the property to retrieve.

Returns: The property value.

Implements AeonGames::Component.

Definition at line 69 of file ModelComponent.cpp.

◆ GetPropertyCount()

size_t AeonGames::ModelComponent::GetPropertyCount ( ) const

finalvirtual

Get the number of properties exposed by this component.

Returns: Property count.

Implements AeonGames::Component.

Definition at line 59 of file ModelComponent.cpp.

◆ GetPropertyInfoArray()

const StringId * AeonGames::ModelComponent::GetPropertyInfoArray ( ) const

finalvirtual

Get the array of property identifiers.

Returns: Pointer to the first element of the property info array.

Implements AeonGames::Component.

Definition at line 64 of file ModelComponent.cpp.

◆ GetStartingFrame()

const double & AeonGames::ModelComponent::GetStartingFrame ( ) const

noexcept

Returns the starting frame for the active animation.

Definition at line 143 of file ModelComponent.cpp.

◆ ProcessMessage()

void AeonGames::ModelComponent::ProcessMessage	(	Node &	aNode,
		uint32_t	aMessageType,
		const void *	aMessageData )

finalvirtual

Process an incoming message.

Parameters

aNode	Node this component is attached to.
aMessageType	Type identifier of the message.
aMessageData	Pointer to message-specific data.

Implements AeonGames::Component.

Definition at line 220 of file ModelComponent.cpp.

◆ Render()

void AeonGames::ModelComponent::Render	(	const Node &	aNode,
		Renderer &	aRenderer,
		void *	aWindowId )

finalvirtual

Render the component.

Parameters

aNode	Node this component is attached to.
aRenderer	Renderer used for drawing.
aWindowId	Platform-specific window identifier.

Implements AeonGames::Component.

Definition at line 192 of file ModelComponent.cpp.

◆ SetActiveAnimation()

void AeonGames::ModelComponent::SetActiveAnimation ( size_t aActiveAnimation )

noexcept

Sets the active animation index.

Parameters

aActiveAnimation Zero-based index of the animation to activate.

Definition at line 127 of file ModelComponent.cpp.

◆ SetModel()

void AeonGames::ModelComponent::SetModel ( const ResourceId & aModel )

Sets the model resource.

Parameters

aModel Resource identifier of the model.

Definition at line 116 of file ModelComponent.cpp.

◆ SetProperty()

void AeonGames::ModelComponent::SetProperty	(	uint32_t	aId,
		const Property &	aProperty )

finalvirtual

Set the value aProperty for the property identified by aId.

Note: If the type of the value passed does not match the expected types no change should be made.

Implements AeonGames::Component.

Definition at line 83 of file ModelComponent.cpp.

◆ SetStartingFrame()

void AeonGames::ModelComponent::SetStartingFrame ( double aAnimationDelta )

noexcept

Sets the starting frame for the active animation.

Parameters

aAnimationDelta Starting frame value.

Definition at line 138 of file ModelComponent.cpp.

◆ Update()

void AeonGames::ModelComponent::Update	(	Node &	aNode,
		double	aDelta )

finalvirtual

Update the component state.

Parameters

aNode	Node this component is attached to.
aDelta	Elapsed time since the last update, in seconds.

Implements AeonGames::Component.

Definition at line 148 of file ModelComponent.cpp.

The documentation for this class was generated from the following files:

engine/components/ModelComponent.h
engine/components/ModelComponent.cpp
