Scene graph node representing an entity in the game world. More...

#include <aeongames/Node.hpp>

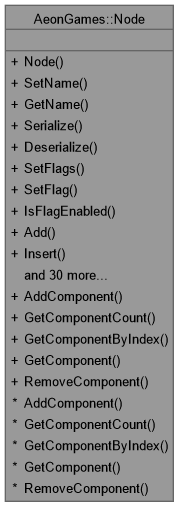

Collaboration diagram for AeonGames::Node:

Public Types
enum	FlagBits { EnabledBit = 1 , VisibleBit = 2 , AllBits = 3 }
	Bitmask values for node flags. More...
enum	Flags { Enabled = 0 , Visible , FlagCount }
	Individual flag indices for use with SetFlag/IsFlagEnabled. More...

Public Member Functions
DLL	Node (uint32_t aFlags=AllBits)
	Construct a node with the given initial flags.
DLL void	SetName (const std::string &aName)
	Set the name of this node.
DLL const std::string &	GetName () const
	Get the name of this node.
DLL void	Serialize (NodeMsg &aNodeMsg) const
	Serialize this node's state into a protobuf message.
DLL void	Deserialize (const NodeMsg &aNodeMsg)
	Deserialize this node's state from a protobuf message.
DLL void	SetFlags (uint32_t aFlagBits, bool aEnabled=true)
	Enables or disables a set of node flags.
DLL void	SetFlag (enum Flags aFlag, bool aEnabled=true)
	Enables or disables a single node flag.
DLL bool	IsFlagEnabled (enum Flags aFlag) const
	Check whether a specific flag is enabled.
DLL Node *	Add (std::unique_ptr< Node > aNode)
	Append a child node.
DLL Node *	Insert (size_t aIndex, std::unique_ptr< Node > aNode)
	Insert a child node at a specific index.
DLL std::unique_ptr< Node >	Remove (Node *)
	Remove a child node by pointer.
DLL std::unique_ptr< Node >	RemoveByIndex (size_t aIndex)
	Remove a child node by index.
DLL Scene *	GetScene () const
	Retrieve a pointer to the scene containing the node instance.
DLL void	LoopTraverseDFSPreOrder (const std::function< void(Node &) > &aAction)
	Iterative depth first search iteration.
DLL void	LoopTraverseDFSPreOrder (const std::function< void(Node &) > &aPreamble, const std::function< void(Node &) > &aPostamble)
	Iterative depth first search iteration.
DLL void	LoopTraverseDFSPreOrder (const std::function< void(const Node &) > &aAction) const
	Constant version of LoopTraverseDFSPreOrder.
DLL void	LoopTraverseDFSPostOrder (const std::function< void(Node &) > &aAction)
	Iterative depth first search iteration.
DLL void	LoopTraverseDFSPostOrder (const std::function< void(const Node &) > &aAction) const
	Constant version of LoopTraverseDFSPostOrder.
DLL void	RecursiveTraverseDFSPreOrder (const std::function< void(Node &) > &aAction)
	Recursive depth first search iteration.
DLL void	RecursiveTraverseDFSPostOrder (const std::function< void(Node &) > &aAction)
	Recursive depth first search iteration.
DLL void	LoopTraverseAncestors (const std::function< void(Node &) > &aAction)
	Traverse ancestors iteratively, calling an action on each.
DLL void	LoopTraverseAncestors (const std::function< void(const Node &) > &aAction) const
	Traverse ancestors iteratively (const version).
DLL void	RecursiveTraverseAncestors (const std::function< void(Node &) > &aAction)
	Traverse ancestors recursively, calling an action on each.
DLL Node *	Find (const std::function< bool(const Node &) > &aUnaryPredicate) const
	Find a descendant node matching a predicate.
DLL const Transform &	GetLocalTransform () const
	Get the local transform relative to the parent.
DLL const Transform &	GetGlobalTransform () const
	Get the global (world-space) transform.
DLL const AABB &	GetAABB () const
	Get the axis-aligned bounding box.
DLL void	SetLocalTransform (const Transform &aTransform)
	Set the local transform relative to the parent.
DLL void	SetGlobalTransform (const Transform &aTransform)
	Set the global (world-space) transform.
DLL void	SetAABB (const AABB &aAABB)
	Set the axis-aligned bounding box.
DLL size_t	GetChildrenCount () const
	Get the number of direct child nodes.
DLL Node *	GetChild (size_t aIndex) const
	Get a child node by index.
DLL const Node &	operator[] (const std::size_t index) const
	Access a child node by index (const).
DLL Node &	operator[] (const std::size_t index)
	Access a child node by index.
DLL NodeParent	GetParent () const
	Get this node's parent.
DLL size_t	GetIndex () const
	Get this node's index within its parent's child list.
DLL uint32_t	GetId () const
	Get the unique identifier of this node.
DLL void	Update (const double delta)
	Update this node and its children.
DLL void	Render (Renderer &aRenderer, void *aWindowId) const
	Render this node and its children.
DLL void	ProcessMessage (uint32_t aMessageType, const void *aMessageData)
	Deliver a message to this node and its components.
Node Data
DLL Component *	AddComponent (std::unique_ptr< Component > aComponent)
	Add a component to this node.
DLL size_t	GetComponentCount () const
	Get the number of components attached to this node.
DLL Component *	GetComponentByIndex (size_t aIndex) const
	Get a component by its index.
DLL Component *	GetComponent (uint32_t aId) const
	Get a component by its type identifier.
DLL std::unique_ptr< Component >	RemoveComponent (uint32_t aId)
	Remove a component by its type identifier.

Friends
class	Scene

Detailed Description

Scene graph node representing an entity in the game world.

Nodes form a hierarchical tree structure and can hold components, transforms, and bounding volumes.

Definition at line 53 of file Node.hpp.

Member Enumeration Documentation

◆ FlagBits

enum AeonGames::Node::FlagBits

Bitmask values for node flags.

Definition at line 57 of file Node.hpp.

◆ Flags

enum AeonGames::Node::Flags

Individual flag indices for use with SetFlag/IsFlagEnabled.

Definition at line 64 of file Node.hpp.

Constructor & Destructor Documentation

◆ Node()

AeonGames::Node::Node ( uint32_t aFlags = AllBits )

Construct a node with the given initial flags.

Parameters

aFlags Bitmask of FlagBits to enable. Defaults to AllBits.

Definition at line 45 of file Node.cpp.

Member Function Documentation

◆ Add()

Node * AeonGames::Node::Add ( std::unique_ptr< Node > aNode )

Append a child node.

Parameters

aNode Unique pointer to the node to add.

Returns: Raw pointer to the added node.

Definition at line 340 of file Node.cpp.

◆ AddComponent()

Component * AeonGames::Node::AddComponent ( std::unique_ptr< Component > aComponent )

Add a component to this node.

Parameters

aComponent Unique pointer to the component.

Returns: Raw pointer to the added component.

Todo: Get Node Data dependencies.

Definition at line 599 of file Node.cpp.

◆ Deserialize()

void AeonGames::Node::Deserialize ( const NodeMsg & aNodeMsg )

Deserialize this node's state from a protobuf message.

Parameters

aNodeMsg The message to read from.

Definition at line 296 of file Node.cpp.

◆ GetAABB()

const AABB & AeonGames::Node::GetAABB ( ) const

Get the axis-aligned bounding box.

Returns: A const reference to the AABB.

Todo: Decide if transforms should be applied to the AABB and return the result

Definition at line 130 of file Node.cpp.

◆ GetChild()

Node * AeonGames::Node::GetChild ( size_t aIndex ) const

Get a child node by index.

Parameters

aIndex Index of the child.

Returns: Pointer to the child node, or nullptr if out of range.

Definition at line 69 of file Node.cpp.

◆ GetChildrenCount()

size_t AeonGames::Node::GetChildrenCount ( ) const

Get the number of direct child nodes.

Returns: Child count.

Definition at line 56 of file Node.cpp.

◆ GetComponent()

Component * AeonGames::Node::GetComponent ( uint32_t aId ) const

Get a component by its type identifier.

Parameters

aId	CRC identifier of the component type.

Returns: Pointer to the component, or nullptr if not found.

Definition at line 616 of file Node.cpp.

◆ GetComponentByIndex()

Component * AeonGames::Node::GetComponentByIndex ( size_t aIndex ) const

Get a component by its index.

Parameters

aIndex Index of the component.

Returns: Pointer to the component, or nullptr if out of range.

Definition at line 594 of file Node.cpp.

◆ GetComponentCount()

size_t AeonGames::Node::GetComponentCount ( ) const

Get the number of components attached to this node.

Returns: Component count.

Definition at line 589 of file Node.cpp.

◆ GetGlobalTransform()

const Transform & AeonGames::Node::GetGlobalTransform ( ) const

Get the global (world-space) transform.

Returns: A const reference to the global transform.

Definition at line 125 of file Node.cpp.

◆ GetId()

uint32_t AeonGames::Node::GetId ( ) const

Get the unique identifier of this node.

Returns: The node id.

Definition at line 210 of file Node.cpp.

◆ GetIndex()

size_t AeonGames::Node::GetIndex ( ) const

Get this node's index within its parent's child list.

Returns: The index position.

Definition at line 77 of file Node.cpp.

◆ GetLocalTransform()

const Transform & AeonGames::Node::GetLocalTransform ( ) const

Get the local transform relative to the parent.

Returns: A const reference to the local transform.

Definition at line 120 of file Node.cpp.

◆ GetName()

const std::string & AeonGames::Node::GetName ( ) const

Get the name of this node.

Returns: A const reference to the node name.

Definition at line 205 of file Node.cpp.

◆ GetParent()

NodeParent AeonGames::Node::GetParent ( ) const

Get this node's parent.

Returns: A NodeParent variant holding either a Node* or Scene*.

Definition at line 73 of file Node.cpp.

◆ GetScene()

Scene * AeonGames::Node::GetScene ( ) const

Retrieve a pointer to the scene containing the node instance.

Returns: A pointer to the scene at the root of the node tree or nullptr if the node is not contained in a scene.

Definition at line 95 of file Node.cpp.

◆ Insert()

Node * AeonGames::Node::Insert	(	size_t	aIndex,
		std::unique_ptr< Node >	aNode )

Insert a child node at a specific index.

Parameters

aIndex	Position at which to insert.
aNode	Unique pointer to the node to insert.

Returns: Raw pointer to the inserted node.

Definition at line 317 of file Node.cpp.

◆ IsFlagEnabled()

bool AeonGames::Node::IsFlagEnabled ( enum Flags aFlag ) const

Check whether a specific flag is enabled.

Parameters

aFlag The flag to query.

Returns: true if the flag is enabled.

Definition at line 115 of file Node.cpp.

◆ LoopTraverseAncestors() [1/2]

void AeonGames::Node::LoopTraverseAncestors ( const std::function< void(const Node &) > & aAction ) const

Traverse ancestors iteratively (const version).

Definition at line 546 of file Node.cpp.

◆ LoopTraverseAncestors() [2/2]

void AeonGames::Node::LoopTraverseAncestors ( const std::function< void(Node &) > & aAction )

Traverse ancestors iteratively, calling an action on each.

Definition at line 536 of file Node.cpp.

◆ LoopTraverseDFSPostOrder()

DLL void AeonGames::Node::LoopTraverseDFSPostOrder ( const std::function< void(Node &) > & aAction )

Iterative depth first search iteration.

Iterates all descendants without recursion in post-order. This function guarrantees that children are processed before their parent.

Parameters

aAction a function, function pointer or function like object to proccess each child node.

See also: Node::LoopTraverseDFSPreOrder,Node::RecursiveTraverseDFSPreOrder,Node::RecursiveTraverseDFSPostOrder

◆ LoopTraverseDFSPreOrder() [1/2]

DLL void AeonGames::Node::LoopTraverseDFSPreOrder ( const std::function< void(Node &) > & aAction )

Iterative depth first search iteration.

Iterates all descendants without recursion in pre-order. This function guarrantees that parents are processed before their children.

Parameters

aAction a function, function pointer or function like object to proccess each child node.

See also: Node::LoopTraverseDFSPostOrder,Node::RecursiveTraverseDFSPreOrder,Node::RecursiveTraverseDFSPostOrder

◆ LoopTraverseDFSPreOrder() [2/2]

void AeonGames::Node::LoopTraverseDFSPreOrder	(	const std::function< void(Node &) > &	aPreamble,
		const std::function< void(Node &) > &	aPostamble )

Iterative depth first search iteration.

Iterates all descendants without recursion in pre-order. This function guarrantees that parents are processed before their children. This function does the same as the single argument version except that it runs two functions, a preamble upon reaching a node and a postamble upon leaving it having run the preambles and postambles of all of the node's children.

Parameters

aPreamble	a function, function pointer or function like object to run upon reaching each child node.
aPostamble	a function, function pointer or function like object to run upon leaving each child node.

See also: Node::LoopTraverseDFSPostOrder,Node::RecursiveTraverseDFSPreOrder,Node::RecursiveTraverseDFSPostOrder

Todo: (EC++ Item 3) This code is the same as the constant overload, but can't easily be implemented in terms of that because of aAction's node parameter needs to also be const.

Definition at line 393 of file Node.cpp.

◆ operator[]() [1/2]

Node & AeonGames::Node::operator[] ( const std::size_t index )

Access a child node by index.

Parameters

index Index of the child.

Returns: Reference to the child node.

Definition at line 65 of file Node.cpp.

◆ operator[]() [2/2]

const Node & AeonGames::Node::operator[] ( const std::size_t index ) const

Access a child node by index (const).

Parameters

index Index of the child.

Returns: Const reference to the child node.

Definition at line 60 of file Node.cpp.

◆ ProcessMessage()

void AeonGames::Node::ProcessMessage	(	uint32_t	aMessageType,
		const void *	aMessageData )

Deliver a message to this node and its components.

Parameters

aMessageType	Type identifier for the message.
aMessageData	Pointer to message-specific data.

Definition at line 573 of file Node.cpp.

◆ RecursiveTraverseAncestors()

void AeonGames::Node::RecursiveTraverseAncestors ( const std::function< void(Node &) > & aAction )

Traverse ancestors recursively, calling an action on each.

Definition at line 556 of file Node.cpp.

◆ RecursiveTraverseDFSPostOrder()

DLL void AeonGames::Node::RecursiveTraverseDFSPostOrder ( const std::function< void(Node &) > & aAction )

Recursive depth first search iteration.

Iterates all descendants with recursion in post-order. This function guarrantees that children are processed before their parent.

Parameters

aAction a function, function pointer or function like object to proccess each child node.

See also: Node::LoopTraverseDFSPreOrder,Node::LoopTraverseDFSPostOrder,Node::RecursiveTraverseDFSPreOrder

◆ RecursiveTraverseDFSPreOrder()

void AeonGames::Node::RecursiveTraverseDFSPreOrder ( const std::function< void(Node &) > & aAction )

Recursive depth first search iteration.

Iterates all descendants with recursion in pre-order. This function guarrantees that parents are processed before their children.

Parameters

aAction a function, function pointer or function like object to proccess each child node.

See also: Node::LoopTraverseDFSPreOrder,Node::LoopTraverseDFSPostOrder,Node::RecursiveTraverseDFSPostOrder

Definition at line 527 of file Node.cpp.

◆ Remove()

std::unique_ptr< Node > AeonGames::Node::Remove ( Node * aNode )

Remove a child node by pointer.

Parameters

aNode Pointer to the child node to remove.

Returns: Unique pointer to the removed node, or nullptr if not found.

Definition at line 355 of file Node.cpp.

◆ RemoveByIndex()

std::unique_ptr< Node > AeonGames::Node::RemoveByIndex ( size_t aIndex )

Remove a child node by index.

Parameters

aIndex Index of the child to remove.

Returns: Unique pointer to the removed node.

Definition at line 379 of file Node.cpp.

◆ RemoveComponent()

std::unique_ptr< Component > AeonGames::Node::RemoveComponent ( uint32_t aId )

Remove a component by its type identifier.

Parameters

aId	CRC identifier of the component type.

Returns: Unique pointer to the removed component, or nullptr if not found.

Definition at line 629 of file Node.cpp.

◆ Render()

void AeonGames::Node::Render	(	Renderer &	aRenderer,
		void *	aWindowId ) const

Render this node and its children.

Parameters

aRenderer	The renderer to draw with.
aWindowId	Platform-specific window handle.

Definition at line 581 of file Node.cpp.

◆ Serialize()

void AeonGames::Node::Serialize ( NodeMsg & aNodeMsg ) const

Serialize this node's state into a protobuf message.

Parameters

aNodeMsg The message to populate.

Definition at line 218 of file Node.cpp.

◆ SetAABB()

void AeonGames::Node::SetAABB ( const AABB & aAABB )

Set the axis-aligned bounding box.

Parameters

aAABB The new AABB.

Definition at line 194 of file Node.cpp.

◆ SetFlag()

void AeonGames::Node::SetFlag	(	enum Flags	aFlag,
		bool	aEnabled = true )

Enables or disables a single node flag.

Parameters

aFlag	Flag to enable/disable.
aEnabled	true to enable, false to disable.

Definition at line 110 of file Node.cpp.

◆ SetFlags()

void AeonGames::Node::SetFlags	(	uint32_t	aFlagBits,
		bool	aEnabled = true )

Enables or disables a set of node flags.

Parameters

aFlagBits	Flag bits to enable/disable.
aEnabled	true to enable, false to disable.

Definition at line 105 of file Node.cpp.

◆ SetGlobalTransform()

void AeonGames::Node::SetGlobalTransform ( const Transform & aTransform )

Set the global (world-space) transform.

Parameters

aTransform The new global transform.

Todo: Although this->mLocalTransform has already been computed think about removing the check and let it be recomputed, it may be faster than the branch that needs to run for each node and is false only once.

Definition at line 158 of file Node.cpp.

◆ SetLocalTransform()

void AeonGames::Node::SetLocalTransform ( const Transform & aTransform )

Set the local transform relative to the parent.

Parameters

aTransform The new local transform.

Definition at line 137 of file Node.cpp.

◆ SetName()

void AeonGames::Node::SetName ( const std::string & aName )

Set the name of this node.

Parameters

aName The new name string.

Definition at line 199 of file Node.cpp.

◆ Update()

void AeonGames::Node::Update ( const double delta )

Update this node and its children.

Parameters

delta Elapsed time in seconds since the last update.

Definition at line 565 of file Node.cpp.

◆ Scene

friend class Scene

friend

Definition at line 250 of file Node.hpp.

The documentation for this class was generated from the following files:

include/aeongames/Node.hpp
engine/core/Node.cpp

Public Types

Public Member Functions

Friends

Detailed Description

Member Enumeration Documentation

◆ FlagBits

◆ Flags

Constructor & Destructor Documentation

◆ Node()

Member Function Documentation

◆ Add()

◆ AddComponent()

◆ Deserialize()

◆ GetAABB()

◆ GetChild()

◆ GetChildrenCount()

◆ GetComponent()

◆ GetComponentByIndex()

◆ GetComponentCount()

◆ GetGlobalTransform()

◆ GetId()

◆ GetIndex()

◆ GetLocalTransform()

◆ GetName()

◆ GetParent()

◆ GetScene()

◆ Insert()

◆ IsFlagEnabled()

◆ LoopTraverseAncestors() [1/2]

◆ LoopTraverseAncestors() [2/2]

◆ LoopTraverseDFSPostOrder()

◆ LoopTraverseDFSPreOrder() [1/2]

◆ LoopTraverseDFSPreOrder() [2/2]

◆ operator[]() [1/2]

◆ operator[]() [2/2]

◆ ProcessMessage()

◆ RecursiveTraverseAncestors()

◆ RecursiveTraverseDFSPostOrder()

◆ RecursiveTraverseDFSPreOrder()

◆ Remove()

◆ RemoveByIndex()

◆ RemoveComponent()

◆ Render()

◆ Serialize()

◆ SetAABB()

◆ SetFlag()

◆ SetFlags()

◆ SetGlobalTransform()

◆ SetLocalTransform()

◆ SetName()

◆ Update()

Friends And Related Symbol Documentation

◆ Scene
