AeonGames::AABB Class Reference

Axis Aligned Bounding Box class. More...

#include <aeongames/AABB.hpp>

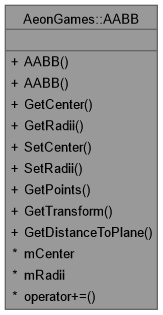

Collaboration diagram for AeonGames::AABB:

Public Member Functions
DLL	AABB ()
	Default constructor.
DLL	AABB (const Vector3 &aCenter, const Vector3 &aRadii)
	Construct an AABB from a center point and radii.
DLL const Vector3 &	GetCenter () const
	Get the center position of the AABB.
DLL const Vector3 &	GetRadii () const
	Get the radii (half-extents) of the AABB.
DLL void	SetCenter (const Vector3 &aCenter)
	Set the center position of the AABB.
DLL void	SetRadii (const Vector3 &aRadii)
	Set the radii (half-extents) of the AABB.
DLL std::array< Vector3, 8 >	GetPoints (const Vector3 &aOffset={ 0.0f, 0.0f, 0.0f, }) const
	Get the eight corner points of the AABB.
DLL Transform	GetTransform () const
	Get the AABB as a transform, the AABB center becomes translation and the radii becomes scale.
DLL float	GetDistanceToPlane (const Plane &aPlane) const
	Returns the shortest distance from any point in the plane's surface to the support point of the AABB in the plain normal inverted direction.

Operators
DLL AABB &	operator+= (const AABB &lhs)
	Expand this AABB to enclose another AABB.

Detailed Description

Axis Aligned Bounding Box class.

Definition at line 33 of file AABB.hpp.

Constructor & Destructor Documentation

AABB()

AeonGames::AABB::AABB	(	const Vector3 &	aCenter,
		const Vector3 &	aRadii )

Construct an AABB from a center point and radii.

Parameters

aCenter	Center position of the bounding box.
aRadii	Half-extents along each axis.

Definition at line 26 of file AABB.cpp.

Member Function Documentation

GetCenter()

const Vector3 & AeonGames::AABB::GetCenter

(

)

const

Get the center position of the AABB.

Returns

Const reference to the center vector.

Definition at line 29 of file AABB.cpp.

GetDistanceToPlane()

float AeonGames::AABB::GetDistanceToPlane

(

const Plane &

aPlane

)

const

Returns the shortest distance from any point in the plane's surface to the support point of the AABB in the plain normal inverted direction.

In other words returns the required displacement of the AABB along the normal direction to leave the AABB just touching the plane from the positive side.

Definition at line 67 of file AABB.cpp.

GetPoints()

std::array< Vector3, 8 > AeonGames::AABB::GetPoints

(

const Vector3 &

aOffset = { 0.0f, 0.0f, 0.0f, }

)

const

Get the eight corner points of the AABB.

Parameters

aOffset

Optional offset applied to all points.

Returns

Array of eight corner vertices.

Definition at line 45 of file AABB.cpp.

GetRadii()

const Vector3 & AeonGames::AABB::GetRadii

(

)

const

Get the radii (half-extents) of the AABB.

Returns

Const reference to the radii vector.

Definition at line 33 of file AABB.cpp.

GetTransform()

Transform AeonGames::AABB::GetTransform

(

)

const

Get the AABB as a transform, the AABB center becomes translation and the radii becomes scale.

Definition at line 62 of file AABB.cpp.

operator+=()

AABB & AeonGames::AABB::operator+=

(

const AABB &

lhs

)

Expand this AABB to enclose another AABB.

Parameters

lhs	The AABB to merge into this one.

Returns

Reference to this AABB after expansion.

Definition at line 78 of file AABB.cpp.

SetCenter()

void AeonGames::AABB::SetCenter

(

const Vector3 &

aCenter

)

Set the center position of the AABB.

Parameters

aCenter

New center position.

Definition at line 37 of file AABB.cpp.

SetRadii()

void AeonGames::AABB::SetRadii

(

const Vector3 &

aRadii

)

Set the radii (half-extents) of the AABB.

Parameters

aRadii

New radii values.

Definition at line 41 of file AABB.cpp.

---

The documentation for this class was generated from the following files:

• include/aeongames/AABB.hpp
• engine/math/AABB.cpp
