AeonGames::Quaternion Class Reference

Quaternion class. More...

#include <aeongames/Quaternion.hpp>

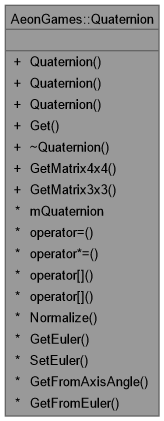

Collaboration diagram for AeonGames::Quaternion:

Public Member Functions
DLL	Quaternion ()
	Default constructor.
DLL	Quaternion (float w, float x, float y, float z)
	Construct a quaternion from individual components.
DLL	Quaternion (const float *aData)
	Construct a quaternion from a float array.
DLL void	Get (float *aData) const
	Copy the quaternion components to a float array.
DLL	~Quaternion ()
	destructor.
DLL Matrix4x4	GetMatrix4x4 () const
	Convert the quaternion to a 4x4 rotation matrix.
DLL Matrix3x3	GetMatrix3x3 () const
	Convert the quaternion to a 3x3 rotation matrix.

Operators
DLL Quaternion &	operator= (const float *aLhs)
	Assign from a raw float array.
DLL Quaternion &	operator*= (const Quaternion &lhs)
	Multiply this quaternion by another quaternion.
DLL float	operator[] (const size_t aIndex) const
	Access a quaternion component by index (const).
DLL float &	operator[] (const size_t aIndex)
	Access a quaternion component by index.
DLL Quaternion &	Normalize ()
	Normalize this quaternion in place.
DLL Vector3	GetEuler () const
	Get the Euler angle representation of this quaternion.
DLL Quaternion &	SetEuler (const Vector3 &aEuler)
	Set the quaternion from Euler angles.
static DLL const Quaternion	GetFromAxisAngle (float angle, float x, float y, float z)
	Create a quaternion from an axis-angle representation.
static DLL const Quaternion	GetFromEuler (const Vector3 &aEuler)
	Create a quaternion from Euler angles.

Detailed Description

Quaternion class.

Definition at line 33 of file Quaternion.hpp.

Constructor & Destructor Documentation

Quaternion() [1/2]

AeonGames::Quaternion::Quaternion	(	float	w,
		float	x,
		float	y,
		float	z )

Construct a quaternion from individual components.

Parameters

w	The scalar (real) component.
x	The X imaginary component.
y	The Y imaginary component.
z	The Z imaginary component.

Definition at line 28 of file Quaternion.cpp.

Quaternion() [2/2]

AeonGames::Quaternion::Quaternion

(

const float *

aData

)

Construct a quaternion from a float array.

Parameters

aData

Pointer to an array of at least 4 floats in W, X, Y, Z order.

Definition at line 33 of file Quaternion.cpp.

Member Function Documentation

Get()

void AeonGames::Quaternion::Get

(

float *

aData

)

const

Copy the quaternion components to a float array.

Parameters

aData

Pointer to an array of at least 4 floats to receive W, X, Y, Z values.

Definition at line 265 of file Quaternion.cpp.

GetEuler()

Vector3 AeonGames::Quaternion::GetEuler

(

)

const

Get the Euler angle representation of this quaternion.

Returns

A vector containing the Euler angles in degrees.

Definition at line 270 of file Quaternion.cpp.

GetFromAxisAngle()

const Quaternion AeonGames::Quaternion::GetFromAxisAngle ( float angle, float x, float y, float z )

static

Create a quaternion from an axis-angle representation.

Parameters

angle	Angle in degrees of rotation.
x	X component of the axis of rotation.
y	Y component of the axis of rotation.
z	Z component of the axis of rotation.

Returns

The resulting quaternion.

Definition at line 228 of file Quaternion.cpp.

GetFromEuler()

const Quaternion AeonGames::Quaternion::GetFromEuler ( const Vector3 & aEuler )

static

Create a quaternion from Euler angles.

Parameters

aEuler

A vector containing Euler angles in degrees.

Returns

The resulting quaternion.

Definition at line 241 of file Quaternion.cpp.

GetMatrix3x3()

Matrix3x3 AeonGames::Quaternion::GetMatrix3x3

(

)

const

Convert the quaternion to a 3x3 rotation matrix.

Returns

The equivalent 3x3 rotation matrix.

Definition at line 77 of file Quaternion.cpp.

GetMatrix4x4()

Matrix4x4 AeonGames::Quaternion::GetMatrix4x4

(

)

const

Convert the quaternion to a 4x4 rotation matrix.

Returns

The equivalent 4x4 rotation matrix.

Definition at line 40 of file Quaternion.cpp.

Normalize()

Quaternion & AeonGames::Quaternion::Normalize

(

)

Normalize this quaternion in place.

Returns

Reference to this quaternion after normalization.

Definition at line 246 of file Quaternion.cpp.

operator*=()

Quaternion & AeonGames::Quaternion::operator*=

(

const Quaternion &

lhs

)

Multiply this quaternion by another quaternion.

Definition at line 116 of file Quaternion.cpp.

operator=()

Quaternion & AeonGames::Quaternion::operator=

(

const float *

aLhs

)

Assign from a raw float array.

Definition at line 110 of file Quaternion.cpp.

operator[]() [1/2]

float & AeonGames::Quaternion::operator[]

(

const size_t

aIndex

)

Access a quaternion component by index.

Definition at line 222 of file Quaternion.cpp.

operator[]() [2/2]

float AeonGames::Quaternion::operator[]

(

const size_t

aIndex

)

const

Access a quaternion component by index (const).

Definition at line 216 of file Quaternion.cpp.

SetEuler()

Quaternion & AeonGames::Quaternion::SetEuler

(

const Vector3 &

aEuler

)

Set the quaternion from Euler angles.

Parameters

aEuler

A vector containing the Euler angles in degrees.

Returns

Reference to this quaternion.

Definition at line 300 of file Quaternion.cpp.

---

The documentation for this class was generated from the following files:

• include/aeongames/Quaternion.hpp
• engine/math/Quaternion.cpp
