AeonGames::Animation Class Reference

Stores skeletal animation data including keyframes and bone transforms. More...

#include <aeongames/Animation.hpp>

Inheritance diagram for AeonGames::Animation:

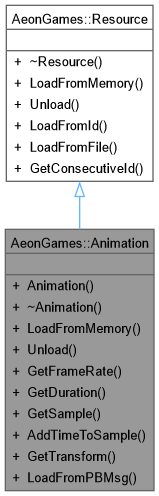

Collaboration diagram for AeonGames::Animation:

Public Member Functions
DLL void	LoadFromMemory (const void *aBuffer, size_t aBufferSize) final
	Load animation data from a memory buffer.
DLL void	Unload () final
	Unload animation data and free resources.
DLL uint32_t	GetFrameRate () const
	Get the frame rate of the animation.
DLL double	GetDuration () const
	Get the total duration of the animation.
DLL double	GetSample (double aTime) const
	Get a normalized sample position for a given time.
DLL double	AddTimeToSample (double aSample, double aTime) const
	Advance a sample position by a time delta.
DLL const Transform	GetTransform (size_t aBoneIndex, double aSample) const
	Get the transform for a specific bone at a given sample.
DLL void	LoadFromPBMsg (const AnimationMsg &aAnimationMsg)
	Load animation data from a protobuf message.
Public Member Functions inherited from AeonGames::Resource
virtual	~Resource ()
	Virtual destructor.
DLL void	LoadFromId (uint32_t aId)
	Load the resource identified by a numeric id.
DLL void	LoadFromFile (const std::string &aFilename)
	Load the resource from a file on disk.
DLL size_t	GetConsecutiveId () const
	Get the Consecutive Id for the resource object.

Detailed Description

Stores skeletal animation data including keyframes and bone transforms.

Definition at line 28 of file Animation.hpp.

Member Function Documentation

AddTimeToSample()

double AeonGames::Animation::AddTimeToSample	(	double	aSample,
		double	aTime ) const

Advance a sample position by a time delta.

Parameters

aSample	Current sample position.
aTime	Time delta in seconds.

Returns

New sample position.

Definition at line 116 of file Animation.cpp.

GetDuration()

double AeonGames::Animation::GetDuration

(

)

const

Get the total duration of the animation.

Returns

Duration in seconds.

Definition at line 101 of file Animation.cpp.

GetFrameRate()

uint32_t AeonGames::Animation::GetFrameRate

(

)

const

Get the frame rate of the animation.

Returns

Frame rate in frames per second.

Definition at line 96 of file Animation.cpp.

GetSample()

double AeonGames::Animation::GetSample

(

double

aTime

)

const

Get a normalized sample position for a given time.

Parameters

aTime

Time in seconds.

Returns

Normalized sample position.

The sample integral part represents the initial frame, the fractional part is the interpolation between the initial frame and the next.

Definition at line 106 of file Animation.cpp.

GetTransform()

const Transform AeonGames::Animation::GetTransform	(	size_t	aBoneIndex,
		double	aSample ) const

Get the transform for a specific bone at a given sample.

Parameters

aBoneIndex	Index of the bone in the skeleton.
aSample	Sample position within the animation.

Returns

Transform for the bone at the given sample.

modf should guarantee interpolation to be in the range [0.0,1.0)

Definition at line 121 of file Animation.cpp.

LoadFromMemory()

void AeonGames::Animation::LoadFromMemory ( const void * aBuffer, size_t aBufferSize )

finalvirtual

Load animation data from a memory buffer.

Parameters

aBuffer	Pointer to the buffer containing animation data.
aBufferSize	Size of the buffer in bytes.

Implements AeonGames::Resource.

Definition at line 42 of file Animation.cpp.

LoadFromPBMsg()

void AeonGames::Animation::LoadFromPBMsg

(

const AnimationMsg &

aAnimationMsg

)

Load animation data from a protobuf message.

Parameters

aAnimationMsg

Protobuf message containing animation data.

Definition at line 47 of file Animation.cpp.

Unload()

void AeonGames::Animation::Unload ( )

finalvirtual

Unload animation data and free resources.

Implements AeonGames::Resource.

Definition at line 86 of file Animation.cpp.

---

The documentation for this class was generated from the following files:

• include/aeongames/Animation.hpp
• engine/core/Animation.cpp
