AeonGames::Model Class Reference

Represents a 3D model composed of assemblies (pipeline, material, mesh), a skeleton, and animations. More...

#include <aeongames/Model.hpp>

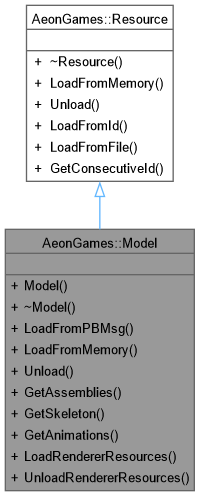

Inheritance diagram for AeonGames::Model:

Collaboration diagram for AeonGames::Model:

Public Types
using	Assembly
	A tuple of ResourceIds representing a pipeline, material, and mesh combination.

Public Member Functions
DLL void	LoadFromPBMsg (const ModelMsg &aModelMsg)
	Load model data from a protobuf message.
DLL void	LoadFromMemory (const void *aBuffer, size_t aBufferSize) final
	Load model data from a memory buffer.
DLL void	Unload () final
	Unload model data and free resources.
DLL const std::vector< Assembly > &	GetAssemblies () const
	Get the list of assemblies that compose this model.
DLL const Skeleton *	GetSkeleton () const
	Get the skeleton associated with this model.
DLL const std::vector< ResourceId > &	GetAnimations () const
	Get the list of animation resource identifiers.
DLL void	LoadRendererResources (Renderer &aRenderer) const
	Load renderer-specific resources for this model.
DLL void	UnloadRendererResources (Renderer &aRenderer) const
	Unload renderer-specific resources for this model.
Public Member Functions inherited from AeonGames::Resource
virtual	~Resource ()
	Virtual destructor.
DLL void	LoadFromId (uint32_t aId)
	Load the resource identified by a numeric id.
DLL void	LoadFromFile (const std::string &aFilename)
	Load the resource from a file on disk.
DLL size_t	GetConsecutiveId () const
	Get the Consecutive Id for the resource object.

Detailed Description

Represents a 3D model composed of assemblies (pipeline, material, mesh), a skeleton, and animations.

Definition at line 34 of file Model.hpp.

Member Typedef Documentation

Assembly

using AeonGames::Model::Assembly

Initial value:

typename std::tuple <
                        ResourceId,
                        ResourceId,
                        ResourceId >

A tuple of ResourceIds representing a pipeline, material, and mesh combination.

Definition at line 38 of file Model.hpp.

Member Function Documentation

GetAnimations()

const std::vector< ResourceId > & AeonGames::Model::GetAnimations

(

)

const

Get the list of animation resource identifiers.

Returns

Reference to the vector of animation ResourceIds.

Definition at line 131 of file Model.cpp.

GetAssemblies()

const std::vector< Model::Assembly > & AeonGames::Model::GetAssemblies

(

)

const

Get the list of assemblies that compose this model.

Returns

Reference to the vector of assemblies.

Definition at line 121 of file Model.cpp.

GetSkeleton()

const Skeleton * AeonGames::Model::GetSkeleton

(

)

const

Get the skeleton associated with this model.

Returns

Pointer to the skeleton, or nullptr if none.

Definition at line 126 of file Model.cpp.

LoadFromMemory()

void AeonGames::Model::LoadFromMemory ( const void * aBuffer, size_t aBufferSize )

finalvirtual

Load model data from a memory buffer.

Parameters

aBuffer	Pointer to the buffer containing model data.
aBufferSize	Size of the buffer in bytes.

Implements AeonGames::Resource.

Definition at line 49 of file Model.cpp.

LoadFromPBMsg()

void AeonGames::Model::LoadFromPBMsg

(

const ModelMsg &

aModelMsg

)

Load model data from a protobuf message.

Parameters

aModelMsg

Protobuf message containing model data.

Definition at line 54 of file Model.cpp.

LoadRendererResources()

void AeonGames::Model::LoadRendererResources

(

Renderer &

aRenderer

)

const

Load renderer-specific resources for this model.

Parameters

aRenderer

reference to the renderer.

Definition at line 136 of file Model.cpp.

Unload()

void AeonGames::Model::Unload ( )

finalvirtual

Unload model data and free resources.

Todo

refcount Resource Id's?

Implements AeonGames::Resource.

Definition at line 114 of file Model.cpp.

UnloadRendererResources()

void AeonGames::Model::UnloadRendererResources

(

Renderer &

aRenderer

)

const

Unload renderer-specific resources for this model.

Parameters

aRenderer

reference to the renderer.

Definition at line 146 of file Model.cpp.

---

The documentation for this class was generated from the following files:

• include/aeongames/Model.hpp
• engine/core/Model.cpp
