AeonGames::ListModel Class Reference

Abstract list model base class associated with a scene node. More...

#include <C:/Code/AeonEngine/tools/worldeditor/models/ListModel.h>

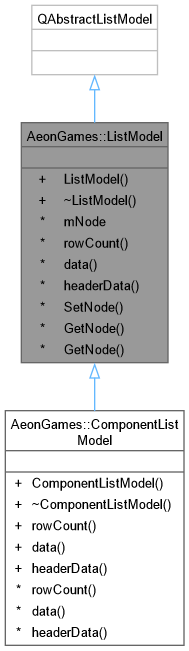

Inheritance diagram for AeonGames::ListModel:

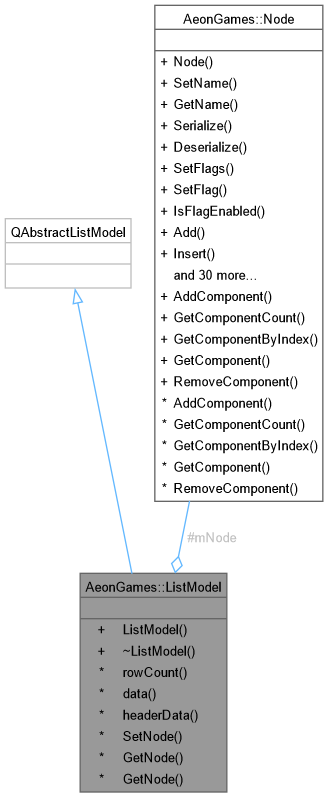

Collaboration diagram for AeonGames::ListModel:

Public Member Functions
	ListModel (QObject *parent=nullptr)
	Construct the list model.
virtual	~ListModel ()
	Destructor.

Qt QAbstractListModel overrides
Node *	mNode {}
	Pointer to the associated node.
int	rowCount (const QModelIndex &index=QModelIndex()) const =0
	Return the number of rows under the given parent.
QVariant	data (const QModelIndex &index, int role=Qt::DisplayRole) const =0
	Return the data for the given index and role.
QVariant	headerData (int section, Qt::Orientation orientation, int role=Qt::DisplayRole) const =0
	Return the header data for the given section, orientation, and role.
void	SetNode (Node *aNode)
	Set the node associated with this model.
const Node *	GetNode () const
	Get a const pointer to the associated node.
Node *	GetNode ()
	Get a mutable pointer to the associated node.

Detailed Description

Abstract list model base class associated with a scene node.

Definition at line 26 of file ListModel.h.

Constructor & Destructor Documentation

ListModel()

AeonGames::ListModel::ListModel

(

QObject *

parent = nullptr

)

Construct the list model.

Parameters

parent

Parent QObject.

Definition at line 30 of file ListModel.cpp.

Member Function Documentation

data()

QVariant AeonGames::ListModel::data ( const QModelIndex & index, int role = Qt::DisplayRole ) const

pure virtual

Return the data for the given index and role.

Parameters

index	Model index.
role	Data role.

Returns

Data as a QVariant.

Implemented in AeonGames::ComponentListModel.

GetNode() [1/2]

Node * AeonGames::ListModel::GetNode

(

)

Get a mutable pointer to the associated node.

Returns

Pointer to the node.

Definition at line 45 of file ListModel.cpp.

GetNode() [2/2]

const Node * AeonGames::ListModel::GetNode

(

)

const

Get a const pointer to the associated node.

Returns

Const pointer to the node.

Definition at line 41 of file ListModel.cpp.

headerData()

QVariant AeonGames::ListModel::headerData ( int section, Qt::Orientation orientation, int role = Qt::DisplayRole ) const

pure virtual

Return the header data for the given section, orientation, and role.

Parameters

section	Header section index.
orientation	Horizontal or vertical header.
role	Data role.

Returns

Header data as a QVariant.

Implemented in AeonGames::ComponentListModel.

rowCount()

int AeonGames::ListModel::rowCount ( const QModelIndex & index = QModelIndex() ) const

pure virtual

Return the number of rows under the given parent.

Parameters

index

Parent model index.

Returns

Number of rows.

Implemented in AeonGames::ComponentListModel.

SetNode()

void AeonGames::ListModel::SetNode

(

Node *

aNode

)

Set the node associated with this model.

Parameters

aNode

Pointer to the node.

Definition at line 35 of file ListModel.cpp.

Member Data Documentation

mNode

Node* AeonGames::ListModel::mNode {}

protected

Pointer to the associated node.

Definition at line 67 of file ListModel.h.

---

The documentation for this class was generated from the following files:

• tools/worldeditor/models/ListModel.h
• tools/worldeditor/models/ListModel.cpp
