Vulkan rendering backend implementing the Renderer interface. More...

#include <C:/Code/AeonEngine/engine/renderers/vulkan/VulkanRenderer.hpp>

Inheritance diagram for AeonGames::VulkanRenderer:

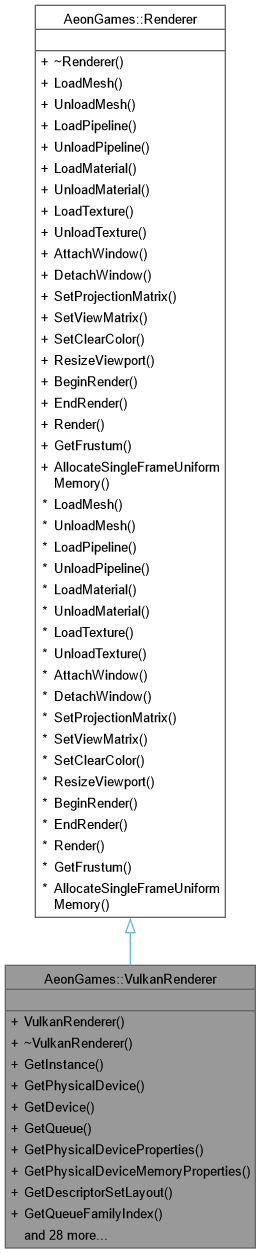

Collaboration diagram for AeonGames::VulkanRenderer:

Public Member Functions
	VulkanRenderer (void *aWindow)
	Construct from a native window handle.
const VkInstance &	GetInstance () const
	Get the Vulkan instance handle.
const VkPhysicalDevice &	GetPhysicalDevice () const
	Get the physical device handle.
const VkDevice &	GetDevice () const
	Get the logical device handle.
const VkQueue &	GetQueue () const
	Get the graphics queue handle.
const VkPhysicalDeviceProperties &	GetPhysicalDeviceProperties () const
	Get the physical device properties.
const VkPhysicalDeviceMemoryProperties &	GetPhysicalDeviceMemoryProperties () const
	Get the physical device memory properties.
const VkDescriptorSetLayout &	GetDescriptorSetLayout (const VkDescriptorSetLayoutCreateInfo &aDescriptorSetLayoutCreateInfo) const
	Get or create a descriptor set layout matching the given create info.
uint32_t	GetQueueFamilyIndex () const
	Get the queue family index used for graphics operations.
uint32_t	GetMemoryTypeIndex (VkMemoryPropertyFlags aVkMemoryPropertyFlags) const
	Get a memory type index matching the requested property flags.
uint32_t	FindMemoryTypeIndex (uint32_t typeFilter, VkMemoryPropertyFlags properties) const
	Find a memory type index matching both a type filter and property flags.
VkCommandBuffer	BeginSingleTimeCommands () const
	Begin recording a single-use command buffer.
void	EndSingleTimeCommands (VkCommandBuffer commandBuffer) const
	Submit and free a single-use command buffer.
void	LoadMesh (const Mesh &aMesh) final
	Loads mesh data into GPU memory.
void	UnloadMesh (const Mesh &aMesh) final
	Unloads mesh data from GPU memory.
void	LoadPipeline (const Pipeline &aPipeline) final
	Loads a rendering pipeline (shaders and state) into the renderer.
void	UnloadPipeline (const Pipeline &aPipeline) final
	Unloads a rendering pipeline from the renderer.
void	LoadMaterial (const Material &aMaterial) final
	Loads material data into the renderer.
void	UnloadMaterial (const Material &aMaterial) final
	Unloads material data from the renderer.
void	LoadTexture (const Texture &aTexture) final
	Loads a texture into GPU memory.
void	UnloadTexture (const Texture &aTexture) final
	Unloads a texture from GPU memory.
const VkDescriptorImageInfo *	GetTextureDescriptorImageInfo (const Texture &aTexture) const
	Get the descriptor image info for a loaded texture.
void	AttachWindow (void *aWindowId) final
	Attach a Window as a rendering surface.
void	DetachWindow (void *aWindowId) final
	Detach a Window as a rendering surface.
void	SetClearColor (void *aWindowId, float R, float G, float B, float A) final
	Sets the color to be used to clear the window background.
void	SetProjectionMatrix (void *aWindowId, const Matrix4x4 &aMatrix) final
	Sets the projection matrix for a specific window surface.
void	SetViewMatrix (void *aWindowId, const Matrix4x4 &aMatrix) final
	Sets the view matrix for a specific window surface.
void	ResizeViewport (void *aWindowId, int32_t aX, int32_t aY, uint32_t aWidth, uint32_t aHeight) final
	Resizes the specific window surface's viewport.
void	BeginRender (void *aWindowId) final
	Begins a render pass for the given window surface.
void	EndRender (void *aWindowId) final
	Ends the current render pass for the given window surface.
void	Render (void aWindowId, const Matrix4x4 &aModelMatrix, const Mesh &aMesh, const Pipeline &aPipeline, const Material aMaterial=nullptr, const BufferAccessor *aSkeleton=nullptr, Topology aTopology=Topology::TRIANGLE_LIST, uint32_t aVertexStart=0, uint32_t aVertexCount=0xffffffff, uint32_t aInstanceCount=1, uint32_t aFirstInstance=0) const final
	Issues a draw call for a mesh with the given pipeline and optional material.
const Frustum &	GetFrustum (void *aWindowId) const final
	Returns the view frustum for the given window surface.
BufferAccessor	AllocateSingleFrameUniformMemory (void *aWindowId, size_t aSize) final
	Allocates uniform buffer memory that is valid for a single frame.
VkRenderPass	GetRenderPass () const
	Get the common Vulkan render pass.
const VulkanPipeline *	GetVulkanPipeline (const Pipeline &aPipeline)
	Get the cached VulkanPipeline for a Pipeline resource.
const VulkanMaterial *	GetVulkanMaterial (const Material &aMaterial)
	Get the cached VulkanMaterial for a Material resource.
const VulkanMesh *	GetVulkanMesh (const Mesh &aMesh)
	Get the cached VulkanMesh for a Mesh resource.
Public Member Functions inherited from AeonGames::Renderer
virtual DLL	~Renderer ()=0
	Virtual destructor.

Detailed Description

Vulkan rendering backend implementing the Renderer interface.

Definition at line 41 of file VulkanRenderer.hpp.

Constructor & Destructor Documentation

◆ VulkanRenderer()

AeonGames::VulkanRenderer::VulkanRenderer ( void * aWindow )

Construct from a native window handle.

Definition at line 46 of file VulkanRenderer.cpp.

◆ ~VulkanRenderer()

AeonGames::VulkanRenderer::~VulkanRenderer ( )

final

Definition at line 74 of file VulkanRenderer.cpp.

Member Function Documentation

◆ AllocateSingleFrameUniformMemory()

BufferAccessor AeonGames::VulkanRenderer::AllocateSingleFrameUniformMemory	(	void *	aWindowId,
		size_t	aSize )

finalvirtual

Allocates uniform buffer memory that is valid for a single frame.

Parameters

aWindowId	Platform dependent window handle.
aSize	Size in bytes of the requested allocation.

Returns: A BufferAccessor to the allocated memory.

Implements AeonGames::Renderer.

Definition at line 968 of file VulkanRenderer.cpp.

◆ AttachWindow()

void AeonGames::VulkanRenderer::AttachWindow ( void * aWindowId )

finalvirtual

Attach a Window as a rendering surface.

Parameters

aWindowId Platform depended window handle.

Implements AeonGames::Renderer.

Definition at line 869 of file VulkanRenderer.cpp.

◆ BeginRender()

void AeonGames::VulkanRenderer::BeginRender ( void * aWindowId )

finalvirtual

Begins a render pass for the given window surface.

Parameters

aWindowId Platform dependent window handle.

Implements AeonGames::Renderer.

Definition at line 919 of file VulkanRenderer.cpp.

◆ BeginSingleTimeCommands()

VkCommandBuffer AeonGames::VulkanRenderer::BeginSingleTimeCommands ( ) const

Begin recording a single-use command buffer.

Definition at line 550 of file VulkanRenderer.cpp.

◆ DetachWindow()

void AeonGames::VulkanRenderer::DetachWindow ( void * aWindowId )

finalvirtual

Detach a Window as a rendering surface.

Parameters

aWindowId Platform depended window handle.

Implements AeonGames::Renderer.

Definition at line 879 of file VulkanRenderer.cpp.

◆ EndRender()

void AeonGames::VulkanRenderer::EndRender ( void * aWindowId )

finalvirtual

Ends the current render pass for the given window surface.

Parameters

aWindowId Platform dependent window handle.

Implements AeonGames::Renderer.

Definition at line 928 of file VulkanRenderer.cpp.

◆ EndSingleTimeCommands()

void AeonGames::VulkanRenderer::EndSingleTimeCommands ( VkCommandBuffer commandBuffer ) const

Submit and free a single-use command buffer.

Definition at line 566 of file VulkanRenderer.cpp.

◆ FindMemoryTypeIndex()

uint32_t AeonGames::VulkanRenderer::FindMemoryTypeIndex	(	uint32_t	typeFilter,
		VkMemoryPropertyFlags	properties ) const

Find a memory type index matching both a type filter and property flags.

Definition at line 139 of file VulkanRenderer.cpp.

◆ GetDescriptorSetLayout()

const VkDescriptorSetLayout & AeonGames::VulkanRenderer::GetDescriptorSetLayout ( const VkDescriptorSetLayoutCreateInfo & aDescriptorSetLayoutCreateInfo ) const

Get or create a descriptor set layout matching the given create info.

Definition at line 750 of file VulkanRenderer.cpp.

◆ GetDevice()

const VkDevice & AeonGames::VulkanRenderer::GetDevice ( ) const

Get the logical device handle.

Definition at line 93 of file VulkanRenderer.cpp.

◆ GetFrustum()

const Frustum & AeonGames::VulkanRenderer::GetFrustum ( void * aWindowId ) const

finalvirtual

Returns the view frustum for the given window surface.

Parameters

aWindowId Platform dependent window handle.

Returns: A const reference to the current view frustum.

Implements AeonGames::Renderer.

Definition at line 957 of file VulkanRenderer.cpp.

◆ GetInstance()

const VkInstance & AeonGames::VulkanRenderer::GetInstance ( ) const

Get the Vulkan instance handle.

Definition at line 103 of file VulkanRenderer.cpp.

◆ GetMemoryTypeIndex()

uint32_t AeonGames::VulkanRenderer::GetMemoryTypeIndex ( VkMemoryPropertyFlags aVkMemoryPropertyFlags ) const

Get a memory type index matching the requested property flags.

Definition at line 158 of file VulkanRenderer.cpp.

◆ GetPhysicalDevice()

const VkPhysicalDevice & AeonGames::VulkanRenderer::GetPhysicalDevice ( ) const

Get the physical device handle.

Definition at line 108 of file VulkanRenderer.cpp.

◆ GetPhysicalDeviceMemoryProperties()

const VkPhysicalDeviceMemoryProperties & AeonGames::VulkanRenderer::GetPhysicalDeviceMemoryProperties ( ) const

Get the physical device memory properties.

Definition at line 118 of file VulkanRenderer.cpp.

◆ GetPhysicalDeviceProperties()

const VkPhysicalDeviceProperties & AeonGames::VulkanRenderer::GetPhysicalDeviceProperties ( ) const

Get the physical device properties.

Definition at line 113 of file VulkanRenderer.cpp.

◆ GetQueue()

const VkQueue & AeonGames::VulkanRenderer::GetQueue ( ) const

Get the graphics queue handle.

Definition at line 98 of file VulkanRenderer.cpp.

◆ GetQueueFamilyIndex()

uint32_t AeonGames::VulkanRenderer::GetQueueFamilyIndex ( ) const

Get the queue family index used for graphics operations.

Definition at line 134 of file VulkanRenderer.cpp.

◆ GetRenderPass()

VkRenderPass AeonGames::VulkanRenderer::GetRenderPass ( ) const

Get the common Vulkan render pass.

Definition at line 123 of file VulkanRenderer.cpp.

◆ GetTextureDescriptorImageInfo()

const VkDescriptorImageInfo * AeonGames::VulkanRenderer::GetTextureDescriptorImageInfo ( const Texture & aTexture ) const

Get the descriptor image info for a loaded texture.

Definition at line 736 of file VulkanRenderer.cpp.

◆ GetVulkanMaterial()

const VulkanMaterial * AeonGames::VulkanRenderer::GetVulkanMaterial ( const Material & aMaterial )

Get the cached VulkanMaterial for a Material resource.

Definition at line 634 of file VulkanRenderer.cpp.

◆ GetVulkanMesh()

const VulkanMesh * AeonGames::VulkanRenderer::GetVulkanMesh ( const Mesh & aMesh )

Get the cached VulkanMesh for a Mesh resource.

Definition at line 602 of file VulkanRenderer.cpp.

◆ GetVulkanPipeline()

const VulkanPipeline * AeonGames::VulkanRenderer::GetVulkanPipeline ( const Pipeline & aPipeline )

Get the cached VulkanPipeline for a Pipeline resource.

Definition at line 619 of file VulkanRenderer.cpp.

◆ LoadMaterial()

void AeonGames::VulkanRenderer::LoadMaterial ( const Material & aMaterial )

finalvirtual

Loads material data into the renderer.

Parameters

aMaterial The material to load.

Implements AeonGames::Renderer.

Definition at line 676 of file VulkanRenderer.cpp.

◆ LoadMesh()

void AeonGames::VulkanRenderer::LoadMesh ( const Mesh & aMesh )

finalvirtual

Loads mesh data into GPU memory.

Parameters

aMesh The mesh to load.

Implements AeonGames::Renderer.

Definition at line 578 of file VulkanRenderer.cpp.

◆ LoadPipeline()

void AeonGames::VulkanRenderer::LoadPipeline ( const Pipeline & aPipeline )

finalvirtual

Loads a rendering pipeline (shaders and state) into the renderer.

Parameters

aPipeline The pipeline to load.

Implements AeonGames::Renderer.

Definition at line 650 of file VulkanRenderer.cpp.

◆ LoadTexture()

void AeonGames::VulkanRenderer::LoadTexture ( const Texture & aTexture )

finalvirtual

Loads a texture into GPU memory.

Parameters

aTexture The texture to load.

Implements AeonGames::Renderer.

Definition at line 715 of file VulkanRenderer.cpp.

◆ Render()

void AeonGames::VulkanRenderer::Render	(	void *	aWindowId,
		const Matrix4x4 &	aModelMatrix,
		const Mesh &	aMesh,
		const Pipeline &	aPipeline,
		const Material *	aMaterial = nullptr,
		const BufferAccessor *	aSkeleton = nullptr,
		Topology	aTopology = Topology::TRIANGLE_LIST,
		uint32_t	aVertexStart = 0,
		uint32_t	aVertexCount = 0xffffffff,
		uint32_t	aInstanceCount = 1,
		uint32_t	aFirstInstance = 0 ) const

finalvirtual

Issues a draw call for a mesh with the given pipeline and optional material.

Parameters

aWindowId	Platform dependent window handle.
aModelMatrix	Model transformation matrix.
aMesh	Mesh to render.
aPipeline	Pipeline (shaders/state) to use.
aMaterial	Optional material to bind.
aSkeleton	Optional skeleton buffer for skinned meshes.
aTopology	Primitive topology (default: TRIANGLE_LIST).
aVertexStart	First vertex index.
aVertexCount	Number of vertices to draw (default: all).
aInstanceCount	Number of instances to draw.
aFirstInstance	Index of the first instance.

Implements AeonGames::Renderer.

Definition at line 937 of file VulkanRenderer.cpp.

◆ ResizeViewport()

void AeonGames::VulkanRenderer::ResizeViewport	(	void *	aWindowId,
		int32_t	aX,
		int32_t	aY,
		uint32_t	aWidth,
		uint32_t	aHeight )

finalvirtual

Resizes the specific window surface's viewport.

Parameters

aWindowId	Platform dependent window handle.
aX	X coordinate of the viewport.
aY	Y coordinate of the viewport.
aWidth	Width of the viewport.
aHeight	Height of the viewport.

Implements AeonGames::Renderer.

Definition at line 909 of file VulkanRenderer.cpp.

◆ SetClearColor()

void AeonGames::VulkanRenderer::SetClearColor	(	void *	aWindowId,
		float	R,
		float	G,
		float	B,
		float	A )

finalvirtual

Sets the color to be used to clear the window background.

Parameters

aWindowId	Platform depended window handle.
R	Red component of the clear color.
G	Green component of the clear color.
B	Blue component of the clear color.
A	Alpha component of the clear color.

Todo: finish this

Implements AeonGames::Renderer.

Definition at line 979 of file VulkanRenderer.cpp.

◆ SetProjectionMatrix()

void AeonGames::VulkanRenderer::SetProjectionMatrix	(	void *	aWindowId,
		const Matrix4x4 &	aMatrix )

finalvirtual

Sets the projection matrix for a specific window surface.

Parameters

aWindowId	Platform depended window handle.
aMatrix	The projection matrix.

Implements AeonGames::Renderer.

Definition at line 889 of file VulkanRenderer.cpp.

◆ SetViewMatrix()

void AeonGames::VulkanRenderer::SetViewMatrix	(	void *	aWindowId,
		const Matrix4x4 &	aMatrix )

finalvirtual

Sets the view matrix for a specific window surface.

Parameters

aWindowId	Platform depended window handle.
aMatrix	The view matrix.

Implements AeonGames::Renderer.

Definition at line 899 of file VulkanRenderer.cpp.

◆ UnloadMaterial()

void AeonGames::VulkanRenderer::UnloadMaterial ( const Material & aMaterial )

finalvirtual

Unloads material data from the renderer.

Parameters

aMaterial The material to unload.

Implements AeonGames::Renderer.

Definition at line 696 of file VulkanRenderer.cpp.

◆ UnloadMesh()

void AeonGames::VulkanRenderer::UnloadMesh ( const Mesh & aMesh )

finalvirtual

Unloads mesh data from GPU memory.

Parameters

aMesh The mesh to unload.

Implements AeonGames::Renderer.

Definition at line 593 of file VulkanRenderer.cpp.

◆ UnloadPipeline()

void AeonGames::VulkanRenderer::UnloadPipeline ( const Pipeline & aPipeline )

finalvirtual

Unloads a rendering pipeline from the renderer.

Parameters

aPipeline The pipeline to unload.

Implements AeonGames::Renderer.

Definition at line 661 of file VulkanRenderer.cpp.

◆ UnloadTexture()

void AeonGames::VulkanRenderer::UnloadTexture ( const Texture & aTexture )

finalvirtual

Unloads a texture from GPU memory.

Parameters

aTexture The texture to unload.

Implements AeonGames::Renderer.

Definition at line 726 of file VulkanRenderer.cpp.

The documentation for this class was generated from the following files:

engine/renderers/vulkan/VulkanRenderer.hpp
engine/renderers/vulkan/VulkanRenderer.cpp

Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ VulkanRenderer()

◆ ~VulkanRenderer()

Member Function Documentation

◆ AllocateSingleFrameUniformMemory()

◆ AttachWindow()

◆ BeginRender()

◆ BeginSingleTimeCommands()

◆ DetachWindow()

◆ EndRender()

◆ EndSingleTimeCommands()

◆ FindMemoryTypeIndex()

◆ GetDescriptorSetLayout()

◆ GetDevice()

◆ GetFrustum()

◆ GetInstance()

◆ GetMemoryTypeIndex()

◆ GetPhysicalDevice()

◆ GetPhysicalDeviceMemoryProperties()

◆ GetPhysicalDeviceProperties()

◆ GetQueue()

◆ GetQueueFamilyIndex()

◆ GetRenderPass()

◆ GetTextureDescriptorImageInfo()

◆ GetVulkanMaterial()

◆ GetVulkanMesh()

◆ GetVulkanPipeline()

◆ LoadMaterial()

◆ LoadMesh()

◆ LoadPipeline()

◆ LoadTexture()

◆ Render()

◆ ResizeViewport()

◆ SetClearColor()

◆ SetProjectionMatrix()

◆ SetViewMatrix()

◆ UnloadMaterial()

◆ UnloadMesh()

◆ UnloadPipeline()

◆ UnloadTexture()
