Represents a polygon mesh with vertex attributes and index data. More...

#include <aeongames/Mesh.hpp>

Inheritance diagram for AeonGames::Mesh:

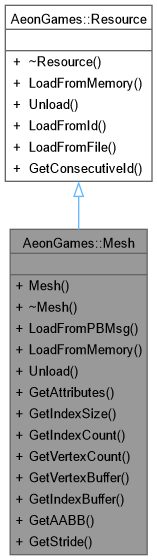

Collaboration diagram for AeonGames::Mesh:

Public Types
enum	AttributeSemantic : uint32_t { POSITION = "VertexPosition"_crc32 , NORMAL = "VertexNormal"_crc32 , TANGENT = "VertexTangent"_crc32 , BITANGENT = "VertexBitangent"_crc32 , TEXCOORD = "VertexUV"_crc32 , WEIGHT_INDEX = "VertexWeightIndices"_crc32 , WEIGHT_VALUE = "VertexWeights"_crc32 , COLOR = "VertexColor"_crc32 }
	Semantic meaning of a vertex attribute, identified by CRC32 of its name. More...
enum	AttributeType : uint8_t { BYTE = 0 , UNSIGNED_BYTE = 1 , SHORT = 2 , UNSIGNED_SHORT = 3 , HALF_FLOAT = 4 , INT = 5 , UNSIGNED_INT = 6 , FLOAT = 7 , FIXED = 8 , DOUBLE = 9 }
	Data type of a vertex attribute component. More...
enum	AttributeFlag : uint8_t { NORMALIZED = 0b00000001 , INTEGER = 0b00000010 }
	Flags that modify how a vertex attribute is interpreted. More...
enum	BindingLocations : uint32_t { MATRICES = "Matrices"_crc32 , MATERIAL = "Material"_crc32 , SKELETON = "Skeleton"_crc32 , SAMPLERS = "Samplers"_crc32 }
	CRC32-based binding location identifiers for descriptor sets. More...
using	AttributeSize = uint8_t
	Type alias for the number of components in a vertex attribute.
using	AttributeFlags = uint8_t
	Type alias for vertex attribute flag bits.
using	AttributeTuple = std::tuple<AttributeSemantic, AttributeSize, AttributeType, AttributeFlags>
	Tuple describing a single vertex attribute (semantic, component count, type, flags).

Public Member Functions
DLL	Mesh ()
	Default constructor.
DLL	~Mesh () final
	Destructor.
DLL void	LoadFromPBMsg (const MeshMsg &aMeshMsg)
	Load mesh data from a protobuf message.
DLL void	LoadFromMemory (const void *aBuffer, size_t aBufferSize) final
	Load mesh data from a raw memory buffer.
DLL void	Unload () final
	Unload mesh data and release resources.
DLL const std::vector< AttributeTuple > &	GetAttributes () const
	Get the list of vertex attributes.
DLL uint32_t	GetIndexSize () const
	Get the size in bytes of a single index.
DLL uint32_t	GetIndexCount () const
	Get the total number of indices.
DLL uint32_t	GetVertexCount () const
	Get the total number of vertices.
DLL const std::vector< uint8_t > &	GetVertexBuffer () const
	Get the raw vertex data buffer.
DLL const std::vector< uint8_t > &	GetIndexBuffer () const
	Get the raw index data buffer.
DLL const AABB &	GetAABB () const
	Get the axis-aligned bounding box of the mesh.
DLL size_t	GetStride () const
	Get the stride (bytes per vertex) for the vertex buffer.
Public Member Functions inherited from AeonGames::Resource
virtual	~Resource ()
	Virtual destructor.
DLL void	LoadFromId (uint32_t aId)
	Load the resource identified by a numeric id.
DLL void	LoadFromFile (const std::string &aFilename)
	Load the resource from a file on disk.
DLL size_t	GetConsecutiveId () const
	Get the Consecutive Id for the resource object.

Detailed Description

Represents a polygon mesh with vertex attributes and index data.

Definition at line 30 of file Mesh.hpp.

Member Typedef Documentation

◆ AttributeFlags

using AeonGames::Mesh::AttributeFlags = uint8_t

Type alias for vertex attribute flag bits.

Definition at line 80 of file Mesh.hpp.

◆ AttributeSize

using AeonGames::Mesh::AttributeSize = uint8_t

Type alias for the number of components in a vertex attribute.

Definition at line 78 of file Mesh.hpp.

◆ AttributeTuple

using AeonGames::Mesh::AttributeTuple = std::tuple<AttributeSemantic, AttributeSize, AttributeType, AttributeFlags>

Tuple describing a single vertex attribute (semantic, component count, type, flags).

Definition at line 82 of file Mesh.hpp.

Member Enumeration Documentation

◆ AttributeFlag

enum AeonGames::Mesh::AttributeFlag : uint8_t

Flags that modify how a vertex attribute is interpreted.

Enumerator
NORMALIZED	Values are normalized to [0,1] or [-1,1].
INTEGER	Values are passed as integers (no conversion).

Definition at line 62 of file Mesh.hpp.

◆ AttributeSemantic

enum AeonGames::Mesh::AttributeSemantic : uint32_t

Semantic meaning of a vertex attribute, identified by CRC32 of its name.

Enumerator
POSITION	Vertex position.
NORMAL	Vertex normal.
TANGENT	Vertex tangent.
BITANGENT	Vertex bitangent.
TEXCOORD	Texture coordinate.
WEIGHT_INDEX	Bone weight indices.
WEIGHT_VALUE	Bone weight values.
COLOR	Vertex color.

Definition at line 34 of file Mesh.hpp.

◆ AttributeType

enum AeonGames::Mesh::AttributeType : uint8_t

Data type of a vertex attribute component.

Enumerator
BYTE	Signed 8-bit integer.
UNSIGNED_BYTE	Unsigned 8-bit integer.
SHORT	Signed 16-bit integer.
UNSIGNED_SHORT	Unsigned 16-bit integer.
HALF_FLOAT	16-bit floating point.
INT	Signed 32-bit integer.
UNSIGNED_INT	Unsigned 32-bit integer.
FLOAT	32-bit floating point.
FIXED	Fixed-point.
DOUBLE	64-bit floating point.

Definition at line 47 of file Mesh.hpp.

◆ BindingLocations

enum AeonGames::Mesh::BindingLocations : uint32_t

CRC32-based binding location identifiers for descriptor sets.

Enumerator
MATRICES	Matrices binding.
MATERIAL	Material binding.
SKELETON	Skeleton binding.
SAMPLERS	Samplers binding.

Definition at line 69 of file Mesh.hpp.

Constructor & Destructor Documentation

◆ ~Mesh()

AeonGames::Mesh::~Mesh ( )

final

Destructor.

Definition at line 33 of file Mesh.cpp.

Member Function Documentation

◆ GetAABB()

const AABB & AeonGames::Mesh::GetAABB ( ) const

Get the axis-aligned bounding box of the mesh.

Returns: Const reference to the AABB.

Definition at line 68 of file Mesh.cpp.

◆ GetAttributes()

const std::vector< Mesh::AttributeTuple > & AeonGames::Mesh::GetAttributes ( ) const

Get the list of vertex attributes.

Returns: Const reference to the attribute tuple vector.

Definition at line 38 of file Mesh.cpp.

◆ GetIndexBuffer()

const std::vector< uint8_t > & AeonGames::Mesh::GetIndexBuffer ( ) const

Get the raw index data buffer.

Returns: Const reference to the index byte vector.

Definition at line 63 of file Mesh.cpp.

◆ GetIndexCount()

uint32_t AeonGames::Mesh::GetIndexCount ( ) const

Get the total number of indices.

Returns: Index count.

Definition at line 48 of file Mesh.cpp.

◆ GetIndexSize()

uint32_t AeonGames::Mesh::GetIndexSize ( ) const

Get the size in bytes of a single index.

Returns: Index element size.

Definition at line 43 of file Mesh.cpp.

◆ GetStride()

size_t AeonGames::Mesh::GetStride ( ) const

Get the stride (bytes per vertex) for the vertex buffer.

Returns: Stride in bytes.

Definition at line 98 of file Mesh.cpp.

◆ GetVertexBuffer()

const std::vector< uint8_t > & AeonGames::Mesh::GetVertexBuffer ( ) const

Get the raw vertex data buffer.

Returns: Const reference to the vertex byte vector.

Definition at line 58 of file Mesh.cpp.

◆ GetVertexCount()

uint32_t AeonGames::Mesh::GetVertexCount ( ) const

Get the total number of vertices.

Returns: Vertex count.

Definition at line 53 of file Mesh.cpp.

◆ LoadFromMemory()

void AeonGames::Mesh::LoadFromMemory	(	const void *	aBuffer,
		size_t	aBufferSize )

finalvirtual

Load mesh data from a raw memory buffer.

Parameters

aBuffer	Pointer to the buffer.
aBufferSize	Size of the buffer in bytes.

Implements AeonGames::Resource.

Definition at line 108 of file Mesh.cpp.

◆ LoadFromPBMsg()

void AeonGames::Mesh::LoadFromPBMsg ( const MeshMsg & aMeshMsg )

Load mesh data from a protobuf message.
