OpenGL rendering backend implementing the Renderer interface. More...

#include <C:/Code/AeonEngine/engine/renderers/opengl/OpenGLRenderer.hpp>

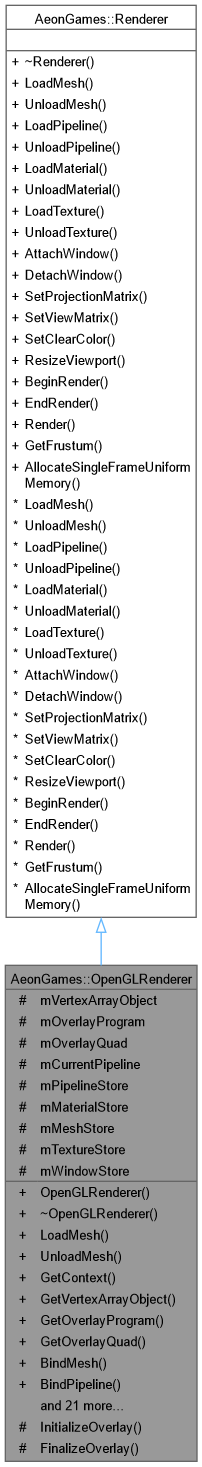

Inheritance diagram for AeonGames::OpenGLRenderer:

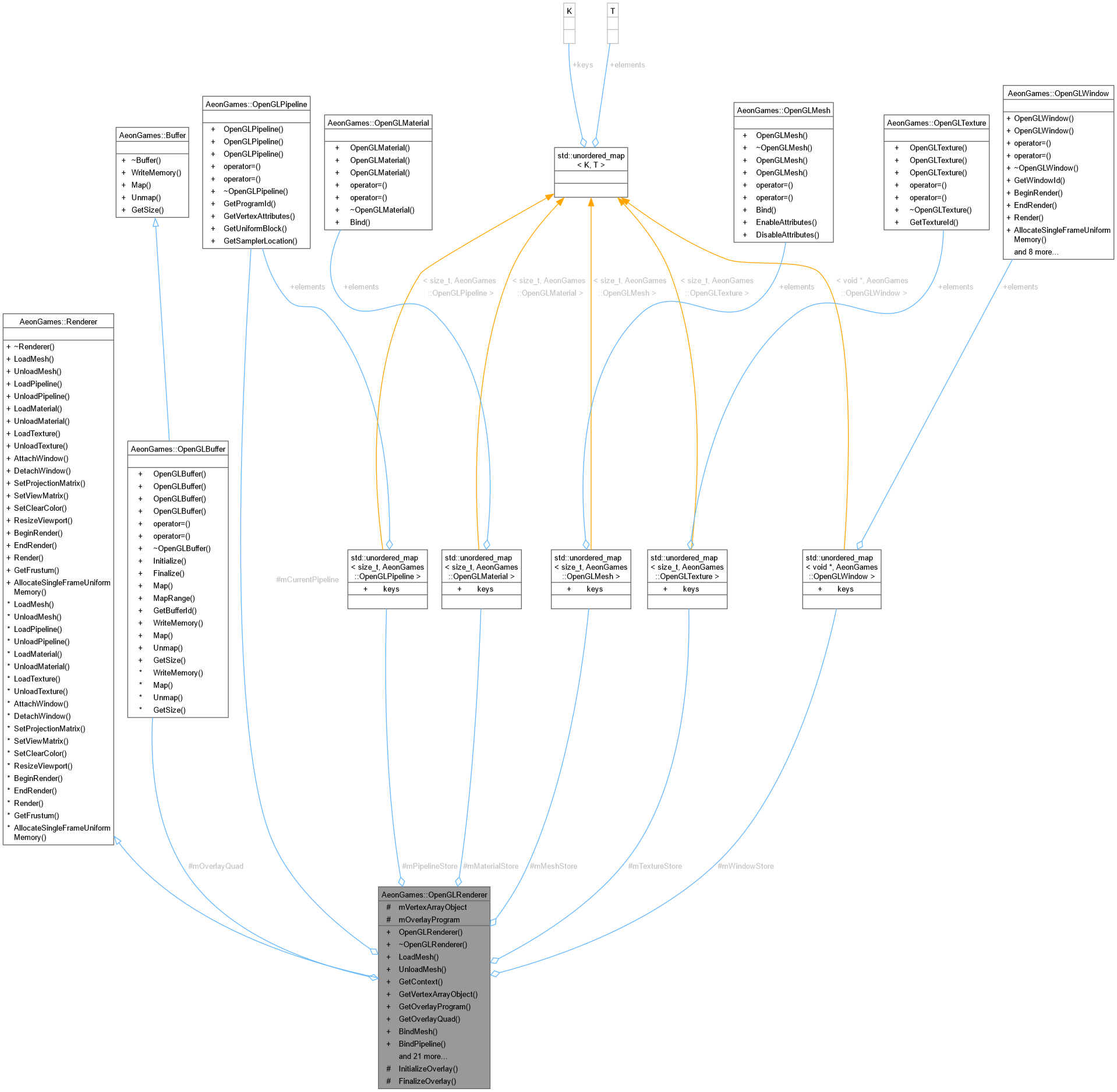

Collaboration diagram for AeonGames::OpenGLRenderer:

Public Member Functions
	OpenGLRenderer (void *aWindow)
	Construct from a native window handle.
void	LoadMesh (const Mesh &aMesh) final
	Loads mesh data into GPU memory.
void	UnloadMesh (const Mesh &aMesh) final
	Unloads mesh data from GPU memory.
void *	GetContext () const
	Get the platform-specific OpenGL rendering context.
GLuint	GetVertexArrayObject () const
	Get the shared vertex array object.
GLuint	GetOverlayProgram () const
	Get the overlay shader program identifier.
GLuint	GetOverlayQuad () const
	Get the overlay screen-quad buffer.
void	BindMesh (const Mesh &aMesh)
	Bind a mesh for subsequent draw calls.
void	BindPipeline (const Pipeline &aPipeline)
	Bind a pipeline (shader program) for rendering.
void	SetMaterial (const Material &aMaterial)
	Set the active material for rendering.
void	SetSkeleton (const BufferAccessor &aSkeletonBuffer) const
	Upload skeleton joint matrices for skinned rendering.
void	SetMatrices (const OpenGLBuffer &aMatricesBuffer) const
	Bind the matrices uniform buffer for the current draw.
void	LoadPipeline (const Pipeline &aPipeline) final
	Loads a rendering pipeline (shaders and state) into the renderer.
void	UnloadPipeline (const Pipeline &aPipeline) final
	Unloads a rendering pipeline from the renderer.
void	LoadMaterial (const Material &aMaterial) final
	Loads material data into the renderer.
void	UnloadMaterial (const Material &aMaterial) final
	Unloads material data from the renderer.
void	LoadTexture (const Texture &aTexture) final
	Loads a texture into GPU memory.
void	UnloadTexture (const Texture &aTexture) final
	Unloads a texture from GPU memory.
GLuint	GetTextureId (const Texture &aTexture)
	Get the OpenGL texture identifier for a loaded texture.
void	AttachWindow (void *aWindowId) final
	Attach a Window as a rendering surface.
void	DetachWindow (void *aWindowId) final
	Detach a Window as a rendering surface.
void	SetProjectionMatrix (void *aWindowId, const Matrix4x4 &aMatrix) final
	Sets the projection matrix for a specific window surface.
void	SetViewMatrix (void *aWindowId, const Matrix4x4 &aMatrix) final
	Sets the view matrix for a specific window surface.
void	SetClearColor (void *aWindowId, float R, float G, float B, float A) final
	Sets the color to be used to clear the window background.
void	ResizeViewport (void *aWindowId, int32_t aX, int32_t aY, uint32_t aWidth, uint32_t aHeight) final
	Resizes the specific window surface's viewport.
void	BeginRender (void *aWindowId) final
	Begins a render pass for the given window surface.
void	EndRender (void *aWindowId) final
	Ends the current render pass for the given window surface.
void	Render (void aWindowId, const Matrix4x4 &aModelMatrix, const Mesh &aMesh, const Pipeline &aPipeline, const Material aMaterial=nullptr, const BufferAccessor *aSkeleton=nullptr, Topology aTopology=Topology::TRIANGLE_LIST, uint32_t aVertexStart=0, uint32_t aVertexCount=0xffffffff, uint32_t aInstanceCount=1, uint32_t aFirstInstance=0) const final
	Issues a draw call for a mesh with the given pipeline and optional material.
const Frustum &	GetFrustum (void *aWindowId) const final
	Returns the view frustum for the given window surface.
BufferAccessor	AllocateSingleFrameUniformMemory (void *aWindowId, size_t aSize) final
	Allocates uniform buffer memory that is valid for a single frame.
Public Member Functions inherited from AeonGames::Renderer
virtual DLL	~Renderer ()=0
	Virtual destructor.

Protected Member Functions
void	InitializeOverlay ()
	Initialize overlay shader program and quad buffer.
void	FinalizeOverlay ()
	Release overlay shader program and quad buffer.

Protected Attributes
GLuint	mVertexArrayObject {}
	General VAO.
GLuint	mOverlayProgram {}
	Raw overlay shader program.
OpenGLBuffer	mOverlayQuad {}
	Overlay quadrilateral.
OpenGLPipeline *	mCurrentPipeline {nullptr}
	Currently bound pipeline.
std::unordered_map< size_t, OpenGLPipeline >	mPipelineStore {}
	Loaded pipeline cache.
std::unordered_map< size_t, OpenGLMaterial >	mMaterialStore {}
	Loaded material cache.
std::unordered_map< size_t, OpenGLMesh >	mMeshStore {}
	Loaded mesh cache.
std::unordered_map< size_t, OpenGLTexture >	mTextureStore {}
	Loaded texture cache.
std::unordered_map< void *, OpenGLWindow >	mWindowStore {}
	Attached window map.

Detailed Description

OpenGL rendering backend implementing the Renderer interface.

Definition at line 44 of file OpenGLRenderer.hpp.

Member Function Documentation

◆ AllocateSingleFrameUniformMemory()

BufferAccessor AeonGames::OpenGLRenderer::AllocateSingleFrameUniformMemory	(	void *	aWindowId,
		size_t	aSize )

finalvirtual

Allocates uniform buffer memory that is valid for a single frame.

Parameters

aWindowId	Platform dependent window handle.
aSize	Size in bytes of the requested allocation.

Returns: A BufferAccessor to the allocated memory.

Implements AeonGames::Renderer.

Definition at line 780 of file OpenGLRenderer.cpp.

◆ AttachWindow()

void AeonGames::OpenGLRenderer::AttachWindow ( void * aWindowId )

finalvirtual

Attach a Window as a rendering surface.

Parameters

aWindowId Platform depended window handle.

Implements AeonGames::Renderer.

Definition at line 669 of file OpenGLRenderer.cpp.

◆ BeginRender()

void AeonGames::OpenGLRenderer::BeginRender ( void * aWindowId )

finalvirtual

Begins a render pass for the given window surface.

Parameters

aWindowId Platform dependent window handle.

Implements AeonGames::Renderer.

Definition at line 732 of file OpenGLRenderer.cpp.

◆ BindMesh()

void AeonGames::OpenGLRenderer::BindMesh ( const Mesh & aMesh )

Bind a mesh for subsequent draw calls.

Definition at line 524 of file OpenGLRenderer.cpp.

◆ BindPipeline()

void AeonGames::OpenGLRenderer::BindPipeline ( const Pipeline & aPipeline )

Bind a pipeline (shader program) for rendering.

Definition at line 557 of file OpenGLRenderer.cpp.

◆ DetachWindow()

void AeonGames::OpenGLRenderer::DetachWindow ( void * aWindowId )

finalvirtual

Detach a Window as a rendering surface.

Parameters

aWindowId Platform depended window handle.

Implements AeonGames::Renderer.

Definition at line 683 of file OpenGLRenderer.cpp.

◆ EndRender()

void AeonGames::OpenGLRenderer::EndRender ( void * aWindowId )

finalvirtual

Ends the current render pass for the given window surface.

Parameters

aWindowId Platform dependent window handle.

Implements AeonGames::Renderer.

Definition at line 741 of file OpenGLRenderer.cpp.

◆ FinalizeOverlay()

void AeonGames::OpenGLRenderer::FinalizeOverlay ( )

protected

Release overlay shader program and quad buffer.

Definition at line 482 of file OpenGLRenderer.cpp.

◆ GetContext()

void * AeonGames::OpenGLRenderer::GetContext ( ) const

Get the platform-specific OpenGL rendering context.

Definition at line 791 of file OpenGLRenderer.cpp.

◆ GetFrustum()

const Frustum & AeonGames::OpenGLRenderer::GetFrustum ( void * aWindowId ) const

finalvirtual

Returns the view frustum for the given window surface.

Parameters

aWindowId Platform dependent window handle.

Returns: A const reference to the current view frustum.

Implements AeonGames::Renderer.

Definition at line 770 of file OpenGLRenderer.cpp.

◆ GetOverlayProgram()

GLuint AeonGames::OpenGLRenderer::GetOverlayProgram ( ) const

Get the overlay shader program identifier.

Definition at line 659 of file OpenGLRenderer.cpp.

◆ GetOverlayQuad()

GLuint AeonGames::OpenGLRenderer::GetOverlayQuad ( ) const

Get the overlay screen-quad buffer.

Definition at line 664 of file OpenGLRenderer.cpp.

◆ GetTextureId()

GLuint AeonGames::OpenGLRenderer::GetTextureId ( const Texture & aTexture )

Get the OpenGL texture identifier for a loaded texture.

Definition at line 643 of file OpenGLRenderer.cpp.

◆ GetVertexArrayObject()

GLuint AeonGames::OpenGLRenderer::GetVertexArrayObject ( ) const

Get the shared vertex array object.

Definition at line 654 of file OpenGLRenderer.cpp.

◆ InitializeOverlay()

void AeonGames::OpenGLRenderer::InitializeOverlay ( )

protected

Initialize overlay shader program and quad buffer.

Definition at line 406 of file OpenGLRenderer.cpp.

◆ LoadMaterial()

void AeonGames::OpenGLRenderer::LoadMaterial ( const Material & aMaterial )

finalvirtual

Loads material data into the renderer.

Parameters

aMaterial The material to load.

Implements AeonGames::Renderer.

Definition at line 610 of file OpenGLRenderer.cpp.

◆ LoadMesh()

void AeonGames::OpenGLRenderer::LoadMesh ( const Mesh & aMesh )

finalvirtual

Loads mesh data into GPU memory.

Parameters

aMesh The mesh to load.

Implements AeonGames::Renderer.

Definition at line 504 of file OpenGLRenderer.cpp.

◆ LoadPipeline()

void AeonGames::OpenGLRenderer::LoadPipeline ( const Pipeline & aPipeline )

finalvirtual

Loads a rendering pipeline (shaders and state) into the renderer.

Parameters

aPipeline The pipeline to load.

Implements AeonGames::Renderer.

Definition at line 539 of file OpenGLRenderer.cpp.

◆ LoadTexture()

void AeonGames::OpenGLRenderer::LoadTexture ( const Texture & aTexture )

finalvirtual

Loads a texture into GPU memory.

Parameters

aTexture The texture to load.

Implements AeonGames::Renderer.

Definition at line 626 of file OpenGLRenderer.cpp.

◆ Render()

void AeonGames::OpenGLRenderer::Render	(	void *	aWindowId,
		const Matrix4x4 &	aModelMatrix,
		const Mesh &	aMesh,
		const Pipeline &	aPipeline,
		const Material *	aMaterial = nullptr,
		const BufferAccessor *	aSkeleton = nullptr,
		Topology	aTopology = Topology::TRIANGLE_LIST,
		uint32_t	aVertexStart = 0,
		uint32_t	aVertexCount = 0xffffffff,
		uint32_t	aInstanceCount = 1,
		uint32_t	aFirstInstance = 0 ) const

finalvirtual

Issues a draw call for a mesh with the given pipeline and optional material.

Parameters

aWindowId	Platform dependent window handle.
aModelMatrix	Model transformation matrix.
aMesh	Mesh to render.
aPipeline	Pipeline (shaders/state) to use.
aMaterial	Optional material to bind.
aSkeleton	Optional skeleton buffer for skinned meshes.
aTopology	Primitive topology (default: TRIANGLE_LIST).
aVertexStart	First vertex index.
aVertexCount	Number of vertices to draw (default: all).
aInstanceCount	Number of instances to draw.
aFirstInstance	Index of the first instance.

Implements AeonGames::Renderer.

Definition at line 750 of file OpenGLRenderer.cpp.

◆ ResizeViewport()

void AeonGames::OpenGLRenderer::ResizeViewport	(	void *	aWindowId,
		int32_t	aX,
		int32_t	aY,
		uint32_t	aWidth,
		uint32_t	aHeight )

finalvirtual

Resizes the specific window surface's viewport.

Parameters

aWindowId	Platform dependent window handle.
aX	X coordinate of the viewport.
aY	Y coordinate of the viewport.
aWidth	Width of the viewport.
aHeight	Height of the viewport.

Implements AeonGames::Renderer.

Definition at line 722 of file OpenGLRenderer.cpp.

◆ SetClearColor()

void AeonGames::OpenGLRenderer::SetClearColor	(	void *	aWindowId,
		float	R,
		float	G,
		float	B,
		float	A )

finalvirtual

Sets the color to be used to clear the window background.

Parameters

aWindowId	Platform depended window handle.
R	Red component of the clear color.
G	Green component of the clear color.
B	Blue component of the clear color.
A	Alpha component of the clear color.

Implements AeonGames::Renderer.

Definition at line 713 of file OpenGLRenderer.cpp.

◆ SetMaterial()

void AeonGames::OpenGLRenderer::SetMaterial ( const Material & aMaterial )

Set the active material for rendering.

Definition at line 570 of file OpenGLRenderer.cpp.

◆ SetMatrices()

void AeonGames::OpenGLRenderer::SetMatrices ( const OpenGLBuffer & aMatricesBuffer ) const

Bind the matrices uniform buffer for the current draw.

Definition at line 596 of file OpenGLRenderer.cpp.

◆ SetProjectionMatrix()

void AeonGames::OpenGLRenderer::SetProjectionMatrix	(	void *	aWindowId,
		const Matrix4x4 &	aMatrix )

finalvirtual

Sets the projection matrix for a specific window surface.

Parameters

aWindowId	Platform depended window handle.
aMatrix	The projection matrix.

Implements AeonGames::Renderer.

Definition at line 693 of file OpenGLRenderer.cpp.

◆ SetSkeleton()

void AeonGames::OpenGLRenderer::SetSkeleton ( const BufferAccessor & aSkeletonBuffer ) const

Upload skeleton joint matrices for skinned rendering.

Definition at line 582 of file OpenGLRenderer.cpp.

◆ SetViewMatrix()

void AeonGames::OpenGLRenderer::SetViewMatrix	(	void *	aWindowId,
		const Matrix4x4 &	aMatrix )

finalvirtual

Sets the view matrix for a specific window surface.

Parameters

aWindowId	Platform depended window handle.
aMatrix	The view matrix.

Implements AeonGames::Renderer.

Definition at line 703 of file OpenGLRenderer.cpp.

◆ UnloadMaterial()

void AeonGames::OpenGLRenderer::UnloadMaterial ( const Material & aMaterial )

finalvirtual

Unloads material data from the renderer.

Parameters

aMaterial The material to unload.

Implements AeonGames::Renderer.

Definition at line 619 of file OpenGLRenderer.cpp.

◆ UnloadMesh()

void AeonGames::OpenGLRenderer::UnloadMesh ( const Mesh & aMesh )

finalvirtual

Unloads mesh data from GPU memory.

Parameters

aMesh The mesh to unload.

Implements AeonGames::Renderer.

Definition at line 515 of file OpenGLRenderer.cpp.

◆ UnloadPipeline()

void AeonGames::OpenGLRenderer::UnloadPipeline ( const Pipeline & aPipeline )

finalvirtual

Unloads a rendering pipeline from the renderer.

Parameters

aPipeline The pipeline to unload.

Implements AeonGames::Renderer.

Definition at line 550 of file OpenGLRenderer.cpp.

◆ UnloadTexture()

void AeonGames::OpenGLRenderer::UnloadTexture ( const Texture & aTexture )

finalvirtual

Unloads a texture from GPU memory.

Parameters

aTexture The texture to unload.

Implements AeonGames::Renderer.

Definition at line 636 of file OpenGLRenderer.cpp.

Member Data Documentation

◆ mCurrentPipeline

OpenGLPipeline* AeonGames::OpenGLRenderer::mCurrentPipeline {nullptr}

protected

Currently bound pipeline.

Definition at line 134 of file OpenGLRenderer.hpp.

◆ mMaterialStore

std::unordered_map<size_t, OpenGLMaterial> AeonGames::OpenGLRenderer::mMaterialStore {}

protected

Loaded material cache.

Definition at line 136 of file OpenGLRenderer.hpp.

◆ mMeshStore

std::unordered_map<size_t, OpenGLMesh> AeonGames::OpenGLRenderer::mMeshStore {}

protected

Loaded mesh cache.

Definition at line 137 of file OpenGLRenderer.hpp.

◆ mPipelineStore

std::unordered_map<size_t, OpenGLPipeline> AeonGames::OpenGLRenderer::mPipelineStore {}

protected

Loaded pipeline cache.

Definition at line 135 of file OpenGLRenderer.hpp.

◆ mTextureStore

std::unordered_map<size_t, OpenGLTexture> AeonGames::OpenGLRenderer::mTextureStore {}

protected

Loaded texture cache.

Definition at line 138 of file OpenGLRenderer.hpp.

◆ mVertexArrayObject

GLuint AeonGames::OpenGLRenderer::mVertexArrayObject {}

protected

General VAO.

Definition at line 121 of file OpenGLRenderer.hpp.

◆ mWindowStore

std::unordered_map<void*, OpenGLWindow> AeonGames::OpenGLRenderer::mWindowStore {}

protected

Attached window map.

Definition at line 139 of file OpenGLRenderer.hpp.

The documentation for this class was generated from the following files:

engine/renderers/opengl/OpenGLRenderer.hpp
engine/renderers/opengl/OpenGLRenderer.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Function Documentation

◆ AllocateSingleFrameUniformMemory()

◆ AttachWindow()

◆ BeginRender()

◆ BindMesh()

◆ BindPipeline()

◆ DetachWindow()

◆ EndRender()

◆ FinalizeOverlay()

◆ GetContext()

◆ GetFrustum()

◆ GetOverlayProgram()

◆ GetOverlayQuad()

◆ GetTextureId()

◆ GetVertexArrayObject()

◆ InitializeOverlay()

◆ LoadMaterial()

◆ LoadMesh()

◆ LoadPipeline()

◆ LoadTexture()

◆ Render()

◆ ResizeViewport()

◆ SetClearColor()

◆ SetMaterial()

◆ SetMatrices()

◆ SetProjectionMatrix()

◆ SetSkeleton()

◆ SetViewMatrix()

◆ UnloadMaterial()

◆ UnloadMesh()

◆ UnloadPipeline()

◆ UnloadTexture()

Member Data Documentation

◆ mCurrentPipeline

◆ mMaterialStore

◆ mMeshStore

◆ mPipelineStore

◆ mTextureStore

◆ mVertexArrayObject

◆ mWindowStore
